Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: VOOption2Type
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract

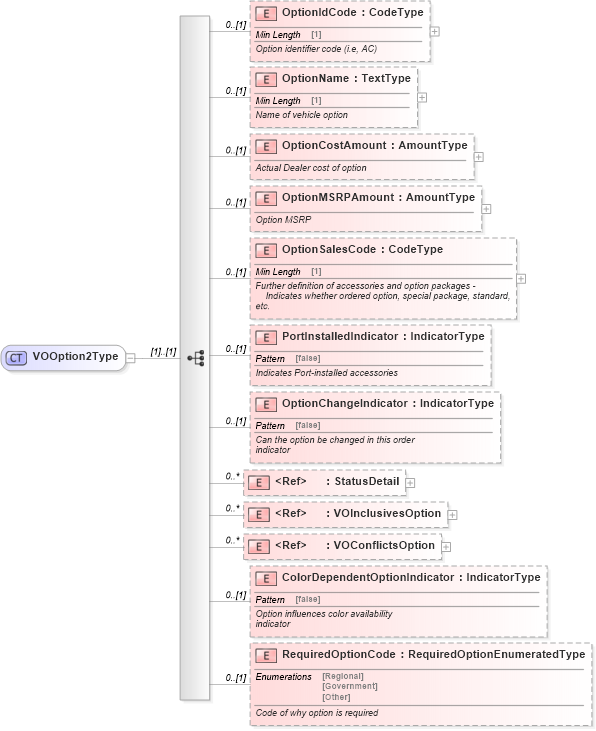

Collapse XSD Schema Diagram:
Drilldown into RequiredOptionCode in schema components_xsd Drilldown into ColorDependentOptionIndicator in schema components_xsd Drilldown into VOConflictsOption in schema components_xsd Drilldown into VOInclusivesOption in schema components_xsd Drilldown into StatusDetail in schema components_xsd Drilldown into OptionChangeIndicator in schema components_xsd Drilldown into PortInstalledIndicator in schema components_xsd Drilldown into OptionSalesCode in schema components_xsd Drilldown into OptionMSRPAmount in schema components_xsd Drilldown into OptionCostAmount in schema components_xsd Drilldown into OptionName in schema components_xsd Drilldown into OptionIdCode in schema components_xsdXSD Diagram of VOOption2Type in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="VOOption2Type">
    <xsd:sequence>
        <xsd:element minOccurs="0" name="OptionIdCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        Option identifier code (i.e, AC)
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OptionName" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation>
                        Name of vehicle option
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OptionCostAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Actual Dealer cost of option
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OptionMSRPAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation>
                        Option MSRP
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OptionSalesCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation>
                        Further definition of accessories and option packages -
                            Indicates whether ordered option, special package, standard,
                        etc.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="PortInstalledIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>
                        Indicates Port-installed accessories
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="OptionChangeIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>
                        Can the option be changed in this order
                        indicator
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="StatusDetail">
            <xsd:annotation>
                <xsd:documentation>
                        Option status
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="VOInclusivesOption">
            <xsd:annotation>
                <xsd:documentation>
                        Other options that must be ordered in conjunction with this
                            option
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="VOConflictsOption">
            <xsd:annotation>
                <xsd:documentation>
                        Other options that cannot be ordered with this
                        option
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ColorDependentOptionIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation>
                        Option influences color availability
                        indicator
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="RequiredOptionCode" type="scl:RequiredOptionEnumeratedType">
            <xsd:annotation>
                <xsd:documentation>
                        Code of why option is required
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OptionIdCode star:OptionIdCode 0 (1)
OptionName star:OptionName 0 (1)
OptionCostAmount star:OptionCostAmount 0 (1)
OptionMSRPAmount star:OptionMSRPAmount 0 (1)
OptionSalesCode star:OptionSalesCode 0 (1)
PortInstalledIndicator star:PortInstalledIndicator 0 (1)
OptionChangeIndicator star:OptionChangeIndicator 0 (1)
StatusDetail star:StatusDetail 0 unbounded
VOInclusivesOption star:VOInclusivesOption 0 unbounded
VOConflictsOption star:VOConflictsOption 0 unbounded
ColorDependentOptionIndicator star:ColorDependentOptionIndicator 0 (1)
RequiredOptionCode star:RequiredOptionCode 0 (1)
Collapse Derivation Tree:
Collapse References:
star:VOOption2
