Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: WarrantyClaimHistory
Namespace: http://www.starstandard.org/STAR/5
Type: star:WarrantyClaimHistoryType
Containing Schema: Components.xsd
Abstract
Documentation:
Warranty Claim information related to job

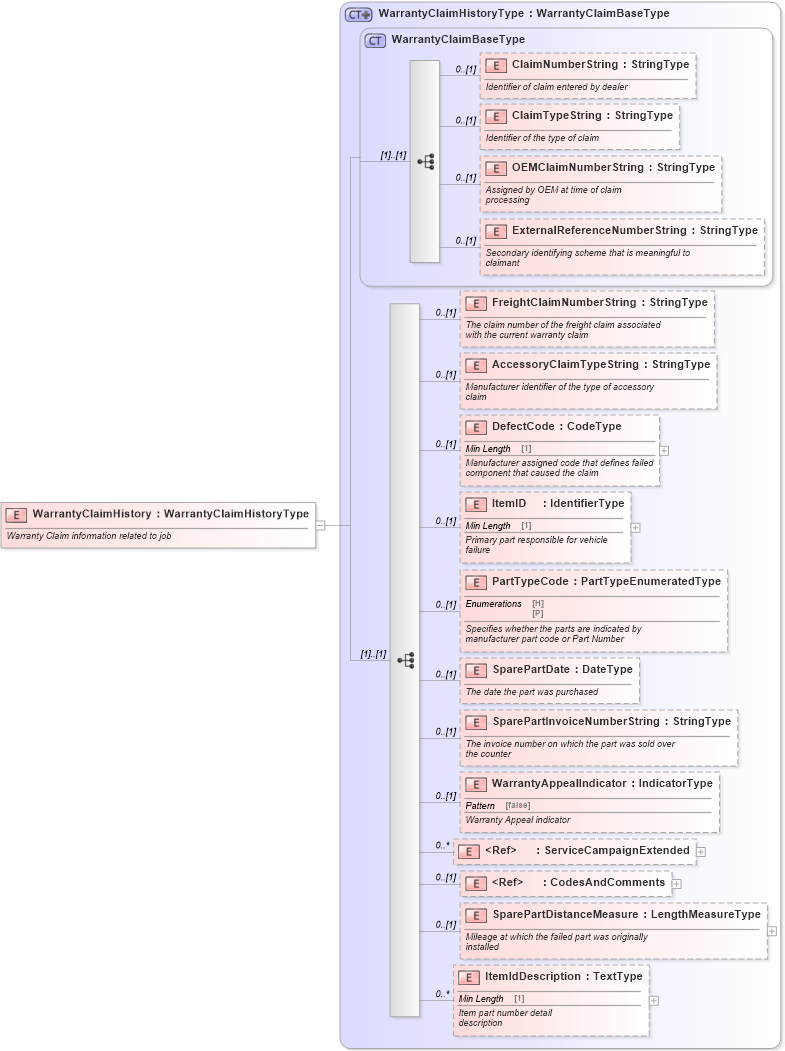

Collapse XSD Schema Diagram:
Drilldown into ItemIdDescription in schema components_xsd Drilldown into SparePartDistanceMeasure in schema components_xsd Drilldown into CodesAndComments in schema components_xsd Drilldown into ServiceCampaignExtended in schema components_xsd Drilldown into WarrantyAppealIndicator in schema components_xsd Drilldown into SparePartInvoiceNumberString in schema components_xsd Drilldown into SparePartDate in schema components_xsd Drilldown into PartTypeCode in schema components_xsd Drilldown into ItemID in schema components_xsd Drilldown into DefectCode in schema components_xsd Drilldown into AccessoryClaimTypeString in schema components_xsd Drilldown into FreightClaimNumberString in schema components_xsd Drilldown into ExternalReferenceNumberString in schema components_xsd Drilldown into OEMClaimNumberString in schema components_xsd Drilldown into ClaimTypeString in schema components_xsd Drilldown into ClaimNumberString in schema components_xsd Drilldown into WarrantyClaimBaseType in schema components_xsd Drilldown into WarrantyClaimHistoryType in schema components_xsdXSD Diagram of WarrantyClaimHistory in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="WarrantyClaimHistory" type="WarrantyClaimHistoryType">
    <xsd:annotation>
        <xsd:documentation>Warranty Claim information related to job</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ClaimNumberString star:ClaimNumberString 0 (1)
ClaimTypeString star:ClaimTypeString 0 (1)
OEMClaimNumberString star:OEMClaimNumberString 0 (1)
ExternalReferenceNumberString star:ExternalReferenceNumberString 0 (1)
FreightClaimNumberString star:FreightClaimNumberString 0 (1)
AccessoryClaimTypeString star:AccessoryClaimTypeString 0 (1)
DefectCode star:DefectCode 0 (1)
ItemID star:ItemID 0 (1)
PartTypeCode star:PartTypeCode 0 (1)
SparePartDate star:SparePartDate 0 (1)
SparePartInvoiceNumberString star:SparePartInvoiceNumberString 0 (1)
WarrantyAppealIndicator star:WarrantyAppealIndicator 0 (1)
ServiceCampaignExtended star:ServiceCampaignExtended 0 unbounded
CodesAndComments star:CodesAndComments 0 (1)
SparePartDistanceMeasure star:SparePartDistanceMeasure 0 (1)
ItemIdDescription star:ItemIdDescription 0 unbounded
Collapse Derivation Tree:
