Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: WarrantyCoverageType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: Components.xsd
Abstract
Documentation:
Describes additional detail information in regards to warranty coverage for individual items.

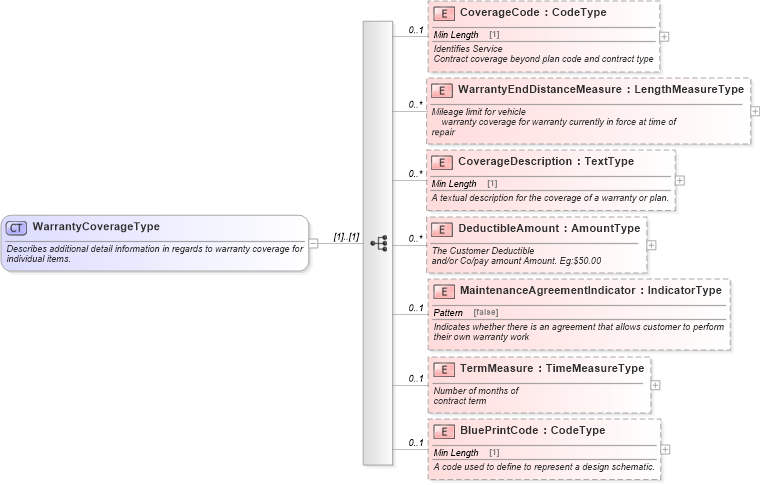

Collapse XSD Schema Diagram:
Drilldown into BluePrintCode in schema components_xsd Drilldown into TermMeasure in schema components_xsd Drilldown into MaintenanceAgreementIndicator in schema components_xsd Drilldown into DeductibleAmount in schema components_xsd Drilldown into CoverageDescription in schema components_xsd Drilldown into WarrantyEndDistanceMeasure in schema components_xsd Drilldown into CoverageCode in schema components_xsdXSD Diagram of WarrantyCoverageType in schema components_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="WarrantyCoverageType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Describes additional detail information in regards to warranty coverage for individual items.
            </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element maxOccurs="1" minOccurs="0" name="CoverageCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies Service
                Contract coverage beyond plan code and contract type</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="WarrantyEndDistanceMeasure" type="sqdt:LengthMeasureType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Mileage limit for vehicle
                warranty coverage for warranty currently in force at time of
            repair</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="CoverageDescription" type="udt:TextType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                A textual description for the coverage of a warranty or plan.
            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" name="DeductibleAmount" type="udt:AmountType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The Customer Deductible
                and/or Co/pay amount Amount. Eg:$50.00</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="MaintenanceAgreementIndicator" type="udt:IndicatorType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Indicates whether there is an agreement that allows customer to perform their own warranty work
            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="TermMeasure" type="sqdt:TimeMeasureType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Number of months of
                contract term</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="1" minOccurs="0" name="BluePrintCode" type="udt:CodeType">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                A code used to define to represent a design schematic.
            </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CoverageCode star:CoverageCode 0 1
WarrantyEndDistanceMeasure star:WarrantyEndDistanceMeasure 0 unbounded
CoverageDescription star:CoverageDescription 0 unbounded
DeductibleAmount star:DeductibleAmount 0 unbounded
MaintenanceAgreementIndicator star:MaintenanceAgreementIndicator 0 1
TermMeasure star:TermMeasure 0 1
BluePrintCode star:BluePrintCode 0 1
Collapse Derivation Tree:
Collapse References:
star:WarrantyCoverage
