Documentation for SportsML
Definition Type: Element
Name: col
Namespace: http://iptc.org/std/nitf/2006-03-01/
Containing Schema: nitf-3-3.xsd
Abstract

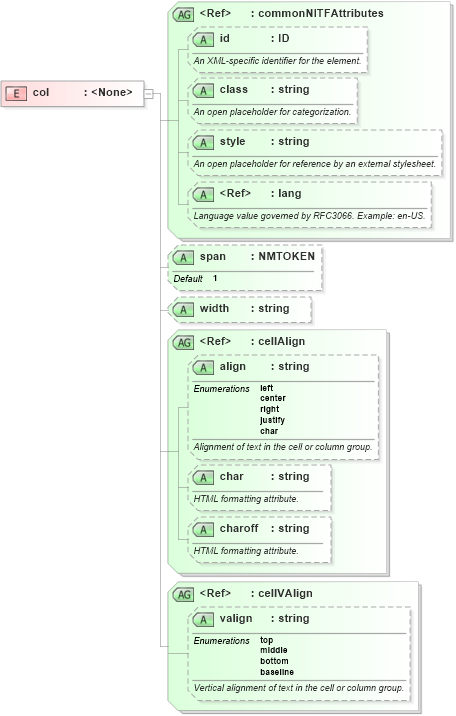

Collapse XSD Schema Diagram:
Drilldown into valign in schema nitf-3-3_xsd Drilldown into cellVAlign in schema nitf-3-3_xsd Drilldown into charoff in schema nitf-3-3_xsd Drilldown into char in schema nitf-3-3_xsd Drilldown into align in schema nitf-3-3_xsd Drilldown into cellAlign in schema nitf-3-3_xsd Drilldown into width in schema nitf-3-3_xsd Drilldown into span in schema nitf-3-3_xsd Drilldown into lang in schema xml_xsd Drilldown into style in schema nitf-3-3_xsd Drilldown into class in schema nitf-3-3_xsd Drilldown into id in schema nitf-3-3_xsd Drilldown into commonNITFAttributes in schema nitf-3-3_xsdXSD Diagram of col in schema nitf-3-3_xsd (SportsML)
Collapse XSD Schema Code:
<element name="col">
    <complexType>
        <attributeGroup ref="nitf:commonNITFAttributes" />
        <attribute name="span" type="NMTOKEN" use="optional" default="1" />
        <attribute name="width" type="string" use="optional" />
        <attributeGroup ref="nitf:cellAlign" />
        <attributeGroup ref="nitf:cellVAlign" />
    </complexType>
</element>
Collapse Child Attributes:
Name Type Default Value Use
id ns0:id Optional
class ns0:class Optional
style ns0:style Optional
lang nsA:lang Optional
span ns0:span 1 Optional
width ns0:width Optional
align ns0:align Optional
char ns0:char Optional
charoff ns0:charoff Optional
valign ns0:valign Optional
