Documentation for SportsML
Definition Type: Element
Name: event-actions
Namespace: http://www.sportsml.org/schema/
Containing Schema: sportsml-core.xsd
Abstract
Documentation:
A container for the various play-by-play actions described herein.

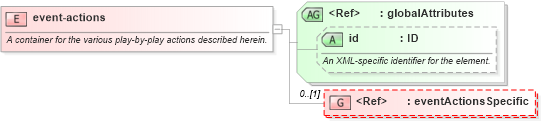

Collapse XSD Schema Diagram:
Drilldown into id in schema sportsml-core_xsd Drilldown into globalAttributes in schema sportsml-core_xsdXSD Diagram of event-actions in schema sportsml-core_xsd (SportsML)
Collapse XSD Schema Code:
<element name="event-actions">
    <annotation>
        <documentation>A container for the various play-by-play actions described herein.</documentation>
    </annotation>
    <complexType>
        <group ref="sportsml:eventActionsSpecific" minOccurs="0" />
        <attributeGroup ref="sportsml:globalAttributes" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
event-actions-american-football sportsml:event-actions-american-football (1) (1)
event-actions-baseball sportsml:event-actions-baseball (1) (1)
event-actions-basketball sportsml:event-actions-basketball (1) (1)
event-actions-golf sportsml:event-actions-golf (1) (1)
event-actions-ice-hockey sportsml:event-actions-ice-hockey (1) (1)
event-actions-soccer sportsml:event-actions-soccer (1) (1)
event-actions-tennis sportsml:event-actions-tennis (1) (1)
event-actions-motor-racing sportsml:event-actions-motor-racing (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id sportsml:id Optional
