Documentation for SportsML
Definition Type: Element
Name: head
Namespace: http://iptc.org/std/nitf/2006-03-01/
Containing Schema: nitf-3-3.xsd
Abstract

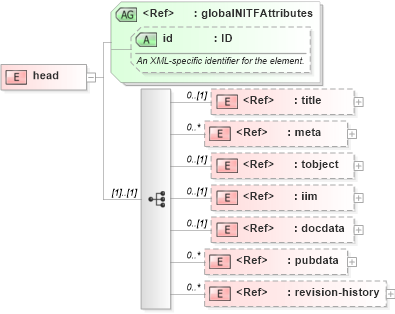

Collapse XSD Schema Diagram:
Drilldown into revision-history in schema nitf-3-3_xsd Drilldown into pubdata in schema nitf-3-3_xsd Drilldown into docdata in schema nitf-3-3_xsd Drilldown into iim in schema nitf-3-3_xsd Drilldown into tobject in schema nitf-3-3_xsd Drilldown into meta in schema nitf-3-3_xsd Drilldown into title in schema nitf-3-3_xsd Drilldown into id in schema nitf-3-3_xsd Drilldown into globalNITFAttributes in schema nitf-3-3_xsdXSD Diagram of head in schema nitf-3-3_xsd (SportsML)
Collapse XSD Schema Code:
<element name="head">
    <complexType>
        <sequence>
            <element ref="nitf:title" minOccurs="0" />
            <element ref="nitf:meta" minOccurs="0" maxOccurs="unbounded" />
            <element ref="nitf:tobject" minOccurs="0" />
            <element ref="nitf:iim" minOccurs="0" />
            <element ref="nitf:docdata" minOccurs="0" />
            <element ref="nitf:pubdata" minOccurs="0" maxOccurs="unbounded" />
            <element ref="nitf:revision-history" minOccurs="0" maxOccurs="unbounded" />
        </sequence>
        <attributeGroup ref="nitf:globalNITFAttributes" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title ns0:title 0 (1)
meta ns0:meta 0 unbounded
tobject ns0:tobject 0 (1)
iim ns0:iim 0 (1)
docdata ns0:docdata 0 (1)
pubdata ns0:pubdata 0 unbounded
revision-history ns0:revision-history 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id ns0:id Optional
