Documentation for SportsML
Definition Type: Element
Name: li
Namespace: http://iptc.org/std/nitf/2006-03-01/
Containing Schema: nitf-3-3.xsd
Abstract

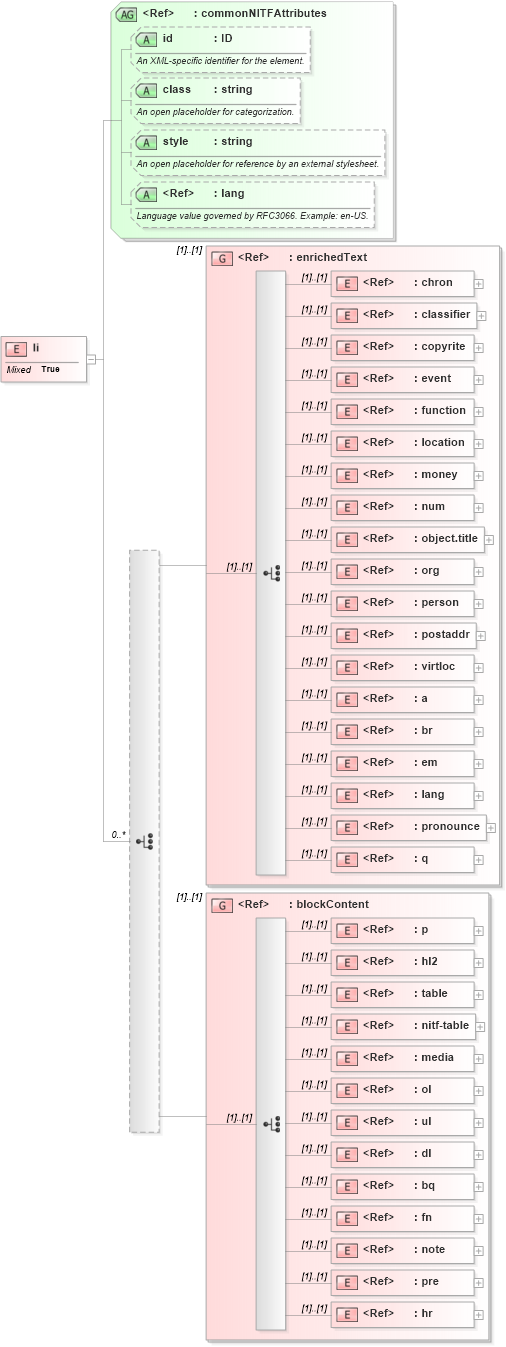

Collapse XSD Schema Diagram:
Drilldown into hr in schema nitf-3-3_xsd Drilldown into pre in schema nitf-3-3_xsd Drilldown into note in schema nitf-3-3_xsd Drilldown into fn in schema nitf-3-3_xsd Drilldown into bq in schema nitf-3-3_xsd Drilldown into dl in schema nitf-3-3_xsd Drilldown into ul in schema nitf-3-3_xsd Drilldown into ol in schema nitf-3-3_xsd Drilldown into media in schema nitf-3-3_xsd Drilldown into nitf-table in schema nitf-3-3_xsd Drilldown into table in schema nitf-3-3_xsd Drilldown into hl2 in schema nitf-3-3_xsd Drilldown into p in schema nitf-3-3_xsd Drilldown into blockContent in schema nitf-3-3_xsd Drilldown into q in schema nitf-3-3_xsd Drilldown into pronounce in schema nitf-3-3_xsd Drilldown into lang in schema nitf-3-3_xsd Drilldown into em in schema nitf-3-3_xsd Drilldown into br in schema nitf-3-3_xsd Drilldown into a in schema nitf-3-3_xsd Drilldown into virtloc in schema nitf-3-3_xsd Drilldown into postaddr in schema nitf-3-3_xsd Drilldown into person in schema nitf-3-3_xsd Drilldown into org in schema nitf-3-3_xsd Drilldown into object.title in schema nitf-3-3_xsd Drilldown into num in schema nitf-3-3_xsd Drilldown into money in schema nitf-3-3_xsd Drilldown into location in schema nitf-3-3_xsd Drilldown into function in schema nitf-3-3_xsd Drilldown into event in schema nitf-3-3_xsd Drilldown into copyrite in schema nitf-3-3_xsd Drilldown into classifier in schema nitf-3-3_xsd Drilldown into chron in schema nitf-3-3_xsd Drilldown into enrichedText in schema nitf-3-3_xsd Drilldown into lang in schema xml_xsd Drilldown into style in schema nitf-3-3_xsd Drilldown into class in schema nitf-3-3_xsd Drilldown into id in schema nitf-3-3_xsd Drilldown into commonNITFAttributes in schema nitf-3-3_xsdXSD Diagram of li in schema nitf-3-3_xsd (SportsML)
Collapse XSD Schema Code:
<element name="li">
    <complexType mixed="true">
        <choice minOccurs="0" maxOccurs="unbounded">
            <group ref="nitf:enrichedText" />
            <group ref="nitf:blockContent" />
        </choice>
        <attributeGroup ref="nitf:commonNITFAttributes" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
chron ns0:chron (1) (1)
classifier ns0:classifier (1) (1)
copyrite ns0:copyrite (1) (1)
event ns0:event (1) (1)
function ns0:function (1) (1)
location ns0:location (1) (1)
money ns0:money (1) (1)
num ns0:num (1) (1)
object.title ns0:object.title (1) (1)
org ns0:org (1) (1)
person ns0:person (1) (1)
postaddr ns0:postaddr (1) (1)
virtloc ns0:virtloc (1) (1)
a ns0:a (1) (1)
br ns0:br (1) (1)
em ns0:em (1) (1)
lang ns0:lang (1) (1)
pronounce ns0:pronounce (1) (1)
q ns0:q (1) (1)
p ns0:p (1) (1)
hl2 ns0:hl2 (1) (1)
table ns0:table (1) (1)
nitf-table ns0:nitf-table (1) (1)
media ns0:media (1) (1)
ol ns0:ol (1) (1)
ul ns0:ul (1) (1)
dl ns0:dl (1) (1)
bq ns0:bq (1) (1)
fn ns0:fn (1) (1)
note ns0:note (1) (1)
pre ns0:pre (1) (1)
hr ns0:hr (1) (1)
<xs:group> ns0:enrichedText (1) (1)
<xs:group> ns0:blockContent (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id ns0:id Optional
class ns0:class Optional
style ns0:style Optional
lang nsA:lang Optional
