Documentation for SportsML
Definition Type: Element
Name: action-american-football-drive
Namespace: http://iptc.org/std/SportsML/2008-04-01/
Containing Schema: sportsml-specific-american-football.xsd
Abstract
Documentation:
A series of plays that may result in a score. | Ends either in a score, or in a change of possession.

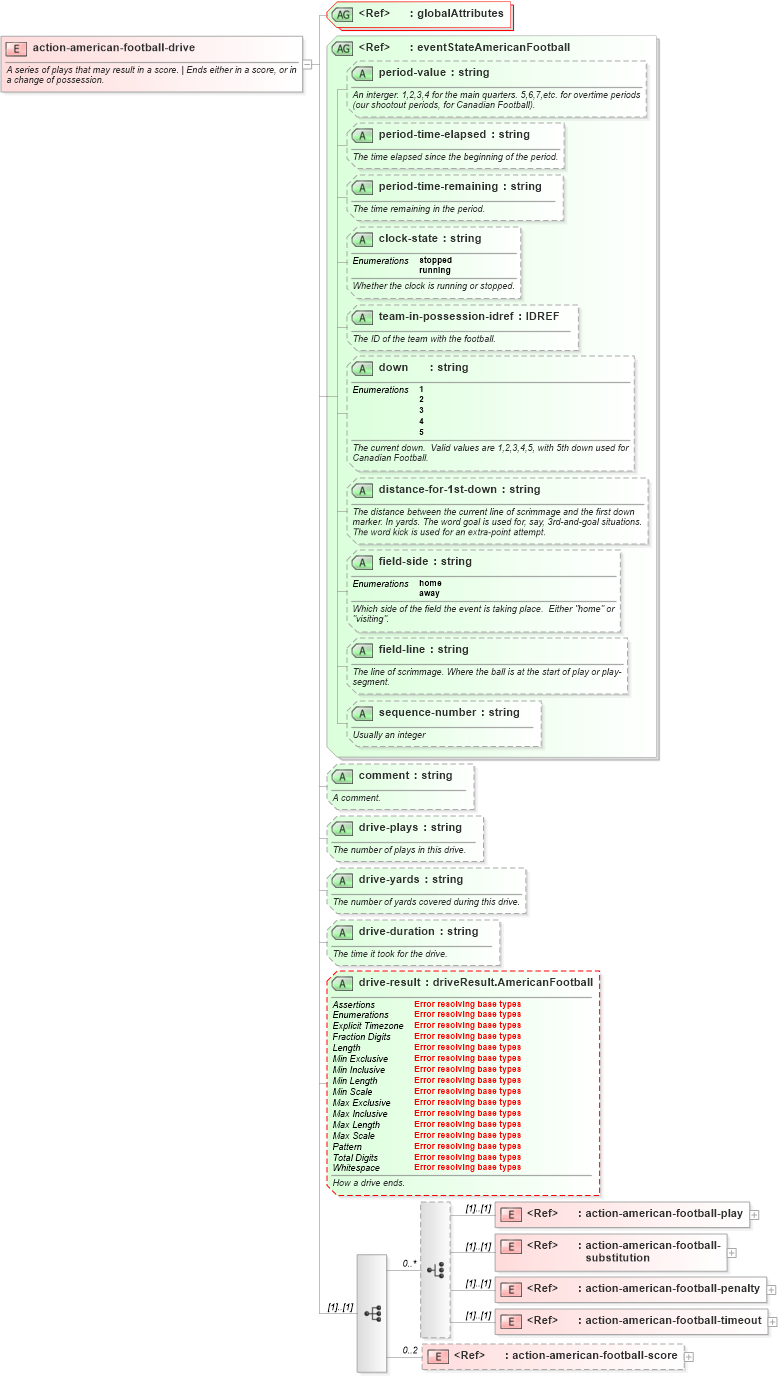

Collapse XSD Schema Diagram:
Drilldown into action-american-football-score in schema sportsml-specific-american-football_xsd Drilldown into action-american-football-timeout in schema sportsml-specific-american-football_xsd Drilldown into action-american-football-penalty in schema sportsml-specific-american-football_xsd Drilldown into action-american-football-substitution in schema sportsml-specific-american-football_xsd Drilldown into action-american-football-play in schema sportsml-specific-american-football_xsd Drilldown into drive-result in schema sportsml-specific-american-football_xsd Drilldown into drive-duration in schema sportsml-specific-american-football_xsd Drilldown into drive-yards in schema sportsml-specific-american-football_xsd Drilldown into drive-plays in schema sportsml-specific-american-football_xsd Drilldown into comment in schema sportsml-specific-american-football_xsd Drilldown into sequence-number in schema sportsml-specific-american-football_xsd Drilldown into field-line in schema sportsml-specific-american-football_xsd Drilldown into field-side in schema sportsml-specific-american-football_xsd Drilldown into distance-for-1st-down in schema sportsml-specific-american-football_xsd Drilldown into down in schema sportsml-specific-american-football_xsd Drilldown into team-in-possession-idref in schema sportsml-specific-american-football_xsd Drilldown into clock-state in schema sportsml-specific-american-football_xsd Drilldown into period-time-remaining in schema sportsml-specific-american-football_xsd Drilldown into period-time-elapsed in schema sportsml-specific-american-football_xsd Drilldown into period-value in schema sportsml-specific-american-football_xsd Drilldown into eventStateAmericanFootball in schema sportsml-specific-american-football_xsdXSD Diagram of action-american-football-drive in schema sportsml-specific-american-football_xsd (SportsML)
Collapse XSD Schema Code:
<element name="action-american-football-drive">
    <annotation>
        <documentation>A series of plays that may result in a score. | Ends either in a score, or in a change of possession.</documentation>
    </annotation>
    <complexType>
        <sequence>
            <choice minOccurs="0" maxOccurs="unbounded">
                <element ref="sportsml:action-american-football-play" />
                <element ref="sportsml:action-american-football-substitution" />
                <element ref="sportsml:action-american-football-penalty" />
                <element ref="sportsml:action-american-football-timeout" />
            </choice>
            <element ref="sportsml:action-american-football-score" minOccurs="0" maxOccurs="2" />
        </sequence>
        <attributeGroup ref="sportsml:globalAttributes" />
        <attributeGroup ref="sportsml:eventStateAmericanFootball" />
        <attribute name="comment" type="string" use="optional">
            <annotation>
                <documentation>A comment.</documentation>
            </annotation>
        </attribute>
        <attribute name="drive-plays" type="string" use="optional">
            <annotation>
                <documentation>The number of plays in this drive.</documentation>
            </annotation>
        </attribute>
        <attribute name="drive-yards" type="string" use="optional">
            <annotation>
                <documentation>The number of yards covered during this drive.</documentation>
            </annotation>
        </attribute>
        <attribute name="drive-duration" type="string" use="optional">
            <annotation>
                <documentation>The time it took for the drive.</documentation>
            </annotation>
        </attribute>
        <attribute name="drive-result" type="sportsml:driveResult.AmericanFootball" use="optional">
            <annotation>
                <documentation>How a drive ends.</documentation>
            </annotation>
        </attribute>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
action-american-football-play sportsml:action-american-football-play (1) (1)
action-american-football-substitution sportsml:action-american-football-substitution (1) (1)
action-american-football-penalty sportsml:action-american-football-penalty (1) (1)
action-american-football-timeout sportsml:action-american-football-timeout (1) (1)
action-american-football-score sportsml:action-american-football-score 0 2
Collapse Child Attributes:
Name Type Default Value Use
id sportsml:id Optional
period-value sportsml:period-value Optional
period-time-elapsed sportsml:period-time-elapsed Optional
period-time-remaining sportsml:period-time-remaining Optional
clock-state sportsml:clock-state Optional
team-in-possession-idref sportsml:team-in-possession-idref Optional
down sportsml:down Optional
distance-for-1st-down sportsml:distance-for-1st-down Optional
field-side sportsml:field-side Optional
field-line sportsml:field-line Optional
sequence-number sportsml:sequence-number Optional
comment sportsml:comment Optional
drive-plays sportsml:drive-plays Optional
drive-yards sportsml:drive-yards Optional
drive-duration sportsml:drive-duration Optional
drive-result sportsml:drive-result Optional
