Documentation for SportsML
Definition Type: Element
Name: action-baseball-other
Namespace: http://iptc.org/std/SportsML/2008-04-01/
Containing Schema: sportsml-specific-baseball.xsd
Abstract
Documentation:
A custom action. | For use when none of the pre-build actions apply.

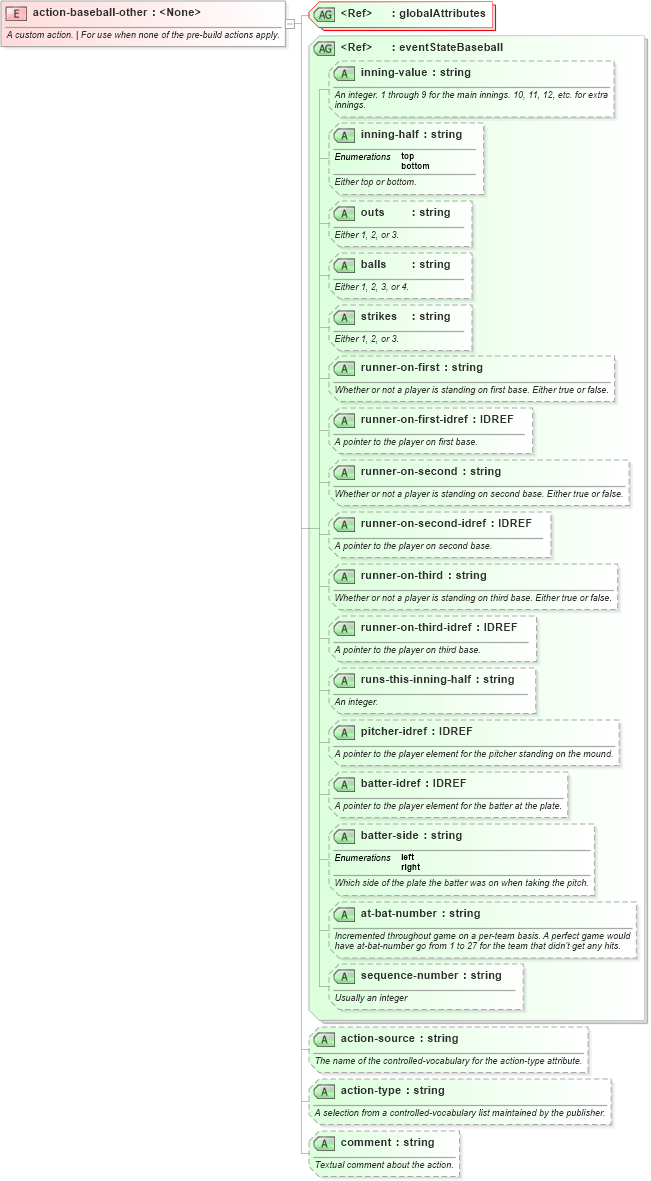

Collapse XSD Schema Diagram:
Drilldown into comment in schema sportsml-specific-baseball_xsd Drilldown into action-type in schema sportsml-specific-baseball_xsd Drilldown into action-source in schema sportsml-specific-baseball_xsd Drilldown into sequence-number in schema sportsml-specific-baseball_xsd Drilldown into at-bat-number in schema sportsml-specific-baseball_xsd Drilldown into batter-side in schema sportsml-specific-baseball_xsd Drilldown into batter-idref in schema sportsml-specific-baseball_xsd Drilldown into pitcher-idref in schema sportsml-specific-baseball_xsd Drilldown into runs-this-inning-half in schema sportsml-specific-baseball_xsd Drilldown into runner-on-third-idref in schema sportsml-specific-baseball_xsd Drilldown into runner-on-third in schema sportsml-specific-baseball_xsd Drilldown into runner-on-second-idref in schema sportsml-specific-baseball_xsd Drilldown into runner-on-second in schema sportsml-specific-baseball_xsd Drilldown into runner-on-first-idref in schema sportsml-specific-baseball_xsd Drilldown into runner-on-first in schema sportsml-specific-baseball_xsd Drilldown into strikes in schema sportsml-specific-baseball_xsd Drilldown into balls in schema sportsml-specific-baseball_xsd Drilldown into outs in schema sportsml-specific-baseball_xsd Drilldown into inning-half in schema sportsml-specific-baseball_xsd Drilldown into inning-value in schema sportsml-specific-baseball_xsd Drilldown into eventStateBaseball in schema sportsml-specific-baseball_xsdXSD Diagram of action-baseball-other in schema sportsml-specific-baseball_xsd (SportsML)
Collapse XSD Schema Code:
<element name="action-baseball-other">
    <annotation>
        <documentation>A custom action. | For use when none of the pre-build actions apply.</documentation>
    </annotation>
    <complexType>
        <attributeGroup ref="sportsml:globalAttributes" />
        <attributeGroup ref="sportsml:eventStateBaseball" />
        <attribute name="action-source" type="string" use="optional">
            <annotation>
                <documentation>The name of the controlled-vocabulary for the action-type attribute.</documentation>
            </annotation>
        </attribute>
        <attribute name="action-type" type="string" use="optional">
            <annotation>
                <documentation>A selection from a controlled-vocabulary list maintained by the publisher.</documentation>
            </annotation>
        </attribute>
        <attribute name="comment" type="string" use="optional">
            <annotation>
                <documentation>Textual comment about the action.</documentation>
            </annotation>
        </attribute>
    </complexType>
</element>
Collapse Child Attributes:
Name Type Default Value Use
id sportsml:id Optional
inning-value sportsml:inning-value Optional
inning-half sportsml:inning-half Optional
outs sportsml:outs Optional
balls sportsml:balls Optional
strikes sportsml:strikes Optional
runner-on-first sportsml:runner-on-first Optional
runner-on-first-idref sportsml:runner-on-first-idref Optional
runner-on-second sportsml:runner-on-second Optional
runner-on-second-idref sportsml:runner-on-second-idref Optional
runner-on-third sportsml:runner-on-third Optional
runner-on-third-idref sportsml:runner-on-third-idref Optional
runs-this-inning-half sportsml:runs-this-inning-half Optional
pitcher-idref sportsml:pitcher-idref Optional
batter-idref sportsml:batter-idref Optional
batter-side sportsml:batter-side Optional
at-bat-number sportsml:at-bat-number Optional
sequence-number sportsml:sequence-number Optional
action-source sportsml:action-source Optional
action-type sportsml:action-type Optional
comment sportsml:comment Optional
