Documentation for SportsML
Definition Type: Element
Name: action-soccer-substitution
Namespace: http://iptc.org/std/SportsML/2008-04-01/
Containing Schema: sportsml-specific-soccer.xsd
Abstract
Documentation:
Substition of a person involved in a game. | Substitution of one person for another in a given position in a game. Not limited to players.

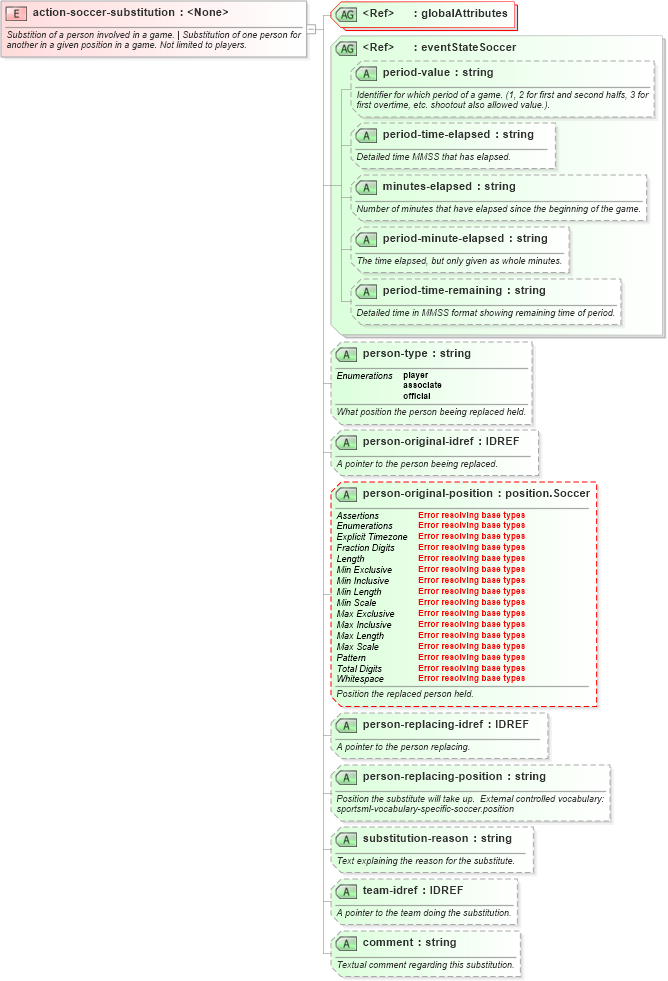

Collapse XSD Schema Diagram:
Drilldown into comment in schema sportsml-specific-soccer_xsd Drilldown into team-idref in schema sportsml-specific-soccer_xsd Drilldown into substitution-reason in schema sportsml-specific-soccer_xsd Drilldown into person-replacing-position in schema sportsml-specific-soccer_xsd Drilldown into person-replacing-idref in schema sportsml-specific-soccer_xsd Drilldown into person-original-position in schema sportsml-specific-soccer_xsd Drilldown into person-original-idref in schema sportsml-specific-soccer_xsd Drilldown into person-type in schema sportsml-specific-soccer_xsd Drilldown into period-time-remaining in schema sportsml-specific-soccer_xsd Drilldown into period-minute-elapsed in schema sportsml-specific-soccer_xsd Drilldown into minutes-elapsed in schema sportsml-specific-soccer_xsd Drilldown into period-time-elapsed in schema sportsml-specific-soccer_xsd Drilldown into period-value in schema sportsml-specific-soccer_xsd Drilldown into eventStateSoccer in schema sportsml-specific-soccer_xsdXSD Diagram of action-soccer-substitution in schema sportsml-specific-soccer_xsd (SportsML)
Collapse XSD Schema Code:
<element name="action-soccer-substitution">
    <annotation>
        <documentation>Substition of a person involved in a game. | Substitution of one person for another in a given position in a game. Not limited to players.</documentation>
    </annotation>
    <complexType>
        <attributeGroup ref="sportsml:globalAttributes" />
        <attributeGroup ref="sportsml:eventStateSoccer" />
        <attribute name="person-type" use="optional">
            <annotation>
                <documentation>What position the person beeing replaced held.</documentation>
            </annotation>
            <simpleType>
                <restriction base="string">
                    <enumeration value="player" />
                    <enumeration value="associate" />
                    <enumeration value="official" />
                </restriction>
            </simpleType>
        </attribute>
        <attribute name="person-original-idref" type="IDREF" use="optional">
            <annotation>
                <documentation>A pointer to the person beeing replaced.</documentation>
            </annotation>
        </attribute>
        <attribute name="person-original-position" type="sportsml:position.Soccer" use="optional">
            <annotation>
                <documentation>Position the replaced person held.</documentation>
            </annotation>
        </attribute>
        <attribute name="person-replacing-idref" type="IDREF" use="optional">
            <annotation>
                <documentation>A pointer to the person replacing.</documentation>
            </annotation>
        </attribute>
        <attribute name="person-replacing-position" type="string" use="optional">
            <annotation>
                <documentation>Position the substitute will take up.  External controlled vocabulary: sportsml-vocabulary-specific-soccer.position</documentation>
            </annotation>
        </attribute>
        <attribute name="substitution-reason" type="string" use="optional">
            <annotation>
                <documentation>Text explaining the reason for the substitute.</documentation>
            </annotation>
        </attribute>
        <attribute name="team-idref" type="IDREF" use="optional">
            <annotation>
                <documentation>A pointer to the team doing the substitution.</documentation>
            </annotation>
        </attribute>
        <attribute name="comment" type="string" use="optional">
            <annotation>
                <documentation>Textual comment regarding this substitution.</documentation>
            </annotation>
        </attribute>
    </complexType>
</element>
Collapse Child Attributes:
Name Type Default Value Use
id sportsml:id Optional
period-value sportsml:period-value Optional
period-time-elapsed sportsml:period-time-elapsed Optional
minutes-elapsed sportsml:minutes-elapsed Optional
period-minute-elapsed sportsml:period-minute-elapsed Optional
period-time-remaining sportsml:period-time-remaining Optional
person-type sportsml:person-type Optional
person-original-idref sportsml:person-original-idref Optional
person-original-position sportsml:person-original-position Optional
person-replacing-idref sportsml:person-replacing-idref Optional
person-replacing-position sportsml:person-replacing-position Optional
substitution-reason sportsml:substitution-reason Optional
team-idref sportsml:team-idref Optional
comment sportsml:comment Optional
