Documentation for SportsML
Definition Type: Element
Name: action-tennis-point
Namespace: http://iptc.org/std/SportsML/2008-04-01/
Containing Schema: sportsml-specific-tennis.xsd
Abstract
Documentation:
Can be recorded whenever a point is won. | Includes an identifier for how that point was one.

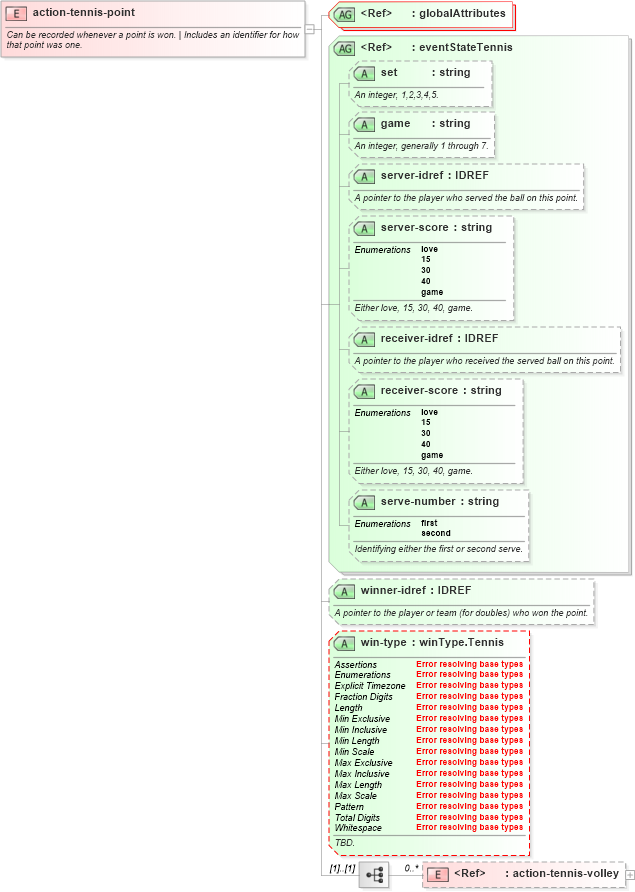

Collapse XSD Schema Diagram:
Drilldown into action-tennis-volley in schema sportsml-specific-tennis_xsd Drilldown into win-type in schema sportsml-specific-tennis_xsd Drilldown into winner-idref in schema sportsml-specific-tennis_xsd Drilldown into serve-number in schema sportsml-specific-tennis_xsd Drilldown into receiver-score in schema sportsml-specific-tennis_xsd Drilldown into receiver-idref in schema sportsml-specific-tennis_xsd Drilldown into server-score in schema sportsml-specific-tennis_xsd Drilldown into server-idref in schema sportsml-specific-tennis_xsd Drilldown into game in schema sportsml-specific-tennis_xsd Drilldown into set in schema sportsml-specific-tennis_xsd Drilldown into eventStateTennis in schema sportsml-specific-tennis_xsdXSD Diagram of action-tennis-point in schema sportsml-specific-tennis_xsd (SportsML)
Collapse XSD Schema Code:
<element name="action-tennis-point">
    <annotation>
        <documentation>Can be recorded whenever a point is won. | Includes an identifier for how that point was one.</documentation>
    </annotation>
    <complexType>
        <sequence>
            <element ref="sportsml:action-tennis-volley" minOccurs="0" maxOccurs="unbounded" />
        </sequence>
        <attributeGroup ref="sportsml:globalAttributes" />
        <attributeGroup ref="sportsml:eventStateTennis" />
        <attribute name="winner-idref" type="IDREF" use="optional">
            <annotation>
                <documentation>A pointer to the player or team (for doubles) who won the point.</documentation>
            </annotation>
        </attribute>
        <attribute name="win-type" type="sportsml:winType.Tennis" use="optional">
            <annotation>
                <documentation>TBD.</documentation>
            </annotation>
        </attribute>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
action-tennis-volley sportsml:action-tennis-volley 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id sportsml:id Optional
set sportsml:set Optional
game sportsml:game Optional
server-idref sportsml:server-idref Optional
server-score sportsml:server-score Optional
receiver-idref sportsml:receiver-idref Optional
receiver-score sportsml:receiver-score Optional
serve-number sportsml:serve-number Optional
winner-idref sportsml:winner-idref Optional
win-type sportsml:win-type Optional
