Documentation for SportsML
Definition Type: Element
Name: byline
Namespace: http://iptc.org/std/NITF/2006-10-18/
Containing Schema: nitf-3-4.xsd
Abstract

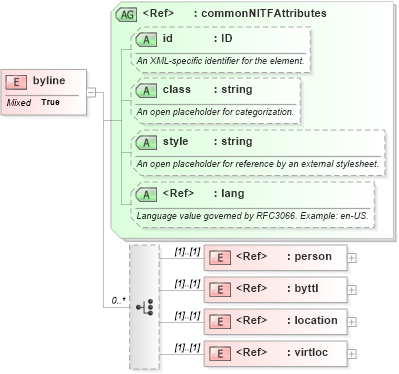

Collapse XSD Schema Diagram:
Drilldown into virtloc in schema nitf-3-4_xsd Drilldown into location in schema nitf-3-4_xsd Drilldown into byttl in schema nitf-3-4_xsd Drilldown into person in schema nitf-3-4_xsd Drilldown into lang in schema xml_xsd Drilldown into style in schema nitf-3-4_xsd Drilldown into class in schema nitf-3-4_xsd Drilldown into id in schema nitf-3-4_xsd Drilldown into commonNITFAttributes in schema nitf-3-4_xsdXSD Diagram of byline in schema nitf-3-4_xsd (SportsML)
Collapse XSD Schema Code:
<element name="byline">
    <complexType mixed="true">
        <choice minOccurs="0" maxOccurs="unbounded">
            <element ref="nitf:person" />
            <element ref="nitf:byttl" />
            <element ref="nitf:location" />
            <element ref="nitf:virtloc" />
        </choice>
        <attributeGroup ref="nitf:commonNITFAttributes" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
person nitf:person (1) (1)
byttl nitf:byttl (1) (1)
location nitf:location (1) (1)
virtloc nitf:virtloc (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nitf:id Optional
class nitf:class Optional
style nitf:style Optional
lang nsA:lang Optional
