Definition Type: Element
Name: event-actions-rugby
Namespace: http://iptc.org/std/SportsML/2008-04-01/
Containing Schema: sportsml-specific-rugby.xsd
Abstract
Documentation:
Action specific to rugby. | Actions that are specific to rugby.

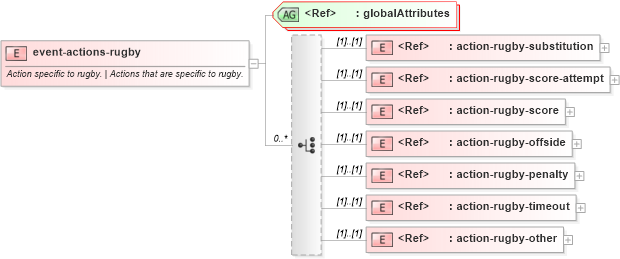

Collapse XSD Schema Diagram:
Drilldown into action-rugby-other in schema sportsml-specific-rugby_xsd Drilldown into action-rugby-timeout in schema sportsml-specific-rugby_xsd Drilldown into action-rugby-penalty in schema sportsml-specific-rugby_xsd Drilldown into action-rugby-offside in schema sportsml-specific-rugby_xsd Drilldown into action-rugby-score in schema sportsml-specific-rugby_xsd Drilldown into action-rugby-score-attempt in schema sportsml-specific-rugby_xsd Drilldown into action-rugby-substitution in schema sportsml-specific-rugby_xsdXSD Diagram of event-actions-rugby in schema sportsml-specific-rugby_xsd (SportsML)
Collapse XSD Schema Code:
<element name="event-actions-rugby">
    <annotation>
        <documentation>Action specific to rugby. | Actions that are specific to rugby.</documentation>
    </annotation>
    <complexType>
        <choice minOccurs="0" maxOccurs="unbounded">
            <element ref="sportsml:action-rugby-substitution" />
            <element ref="sportsml:action-rugby-score-attempt" />
            <element ref="sportsml:action-rugby-score" />
            <element ref="sportsml:action-rugby-offside" />
            <element ref="sportsml:action-rugby-penalty" />
            <element ref="sportsml:action-rugby-timeout" />
            <element ref="sportsml:action-rugby-other" />
        </choice>
        <attributeGroup ref="sportsml:globalAttributes" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
action-rugby-substitution sportsml:action-rugby-substitution (1) (1)
action-rugby-score-attempt sportsml:action-rugby-score-attempt (1) (1)
action-rugby-score sportsml:action-rugby-score (1) (1)
action-rugby-offside sportsml:action-rugby-offside (1) (1)
action-rugby-penalty sportsml:action-rugby-penalty (1) (1)
action-rugby-timeout sportsml:action-rugby-timeout (1) (1)
action-rugby-other sportsml:action-rugby-other (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id sportsml:id Optional
