Documentation for SportsML
Definition Type: Element
Name: event-metadata-soccer
Namespace: http://iptc.org/std/SportsML/2008-04-01/
Containing Schema: sportsml-specific-soccer.xsd
Abstract
Documentation:
Soccer-specific metadata for events. | Metadata that is specific to soccer for events.

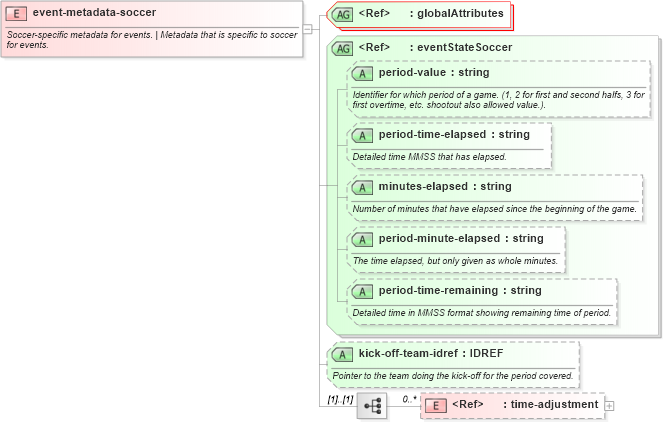

Collapse XSD Schema Diagram:
Drilldown into time-adjustment in schema sportsml-specific-soccer_xsd Drilldown into kick-off-team-idref in schema sportsml-specific-soccer_xsd Drilldown into period-time-remaining in schema sportsml-specific-soccer_xsd Drilldown into period-minute-elapsed in schema sportsml-specific-soccer_xsd Drilldown into minutes-elapsed in schema sportsml-specific-soccer_xsd Drilldown into period-time-elapsed in schema sportsml-specific-soccer_xsd Drilldown into period-value in schema sportsml-specific-soccer_xsd Drilldown into eventStateSoccer in schema sportsml-specific-soccer_xsdXSD Diagram of event-metadata-soccer in schema sportsml-specific-soccer_xsd (SportsML)
Collapse XSD Schema Code:
<element name="event-metadata-soccer">
    <annotation>
        <documentation>Soccer-specific metadata for events. | Metadata that is specific to soccer for events.</documentation>
    </annotation>
    <complexType>
        <sequence>
            <element ref="sportsml:time-adjustment" minOccurs="0" maxOccurs="unbounded" />
        </sequence>
        <attributeGroup ref="sportsml:globalAttributes" />
        <attributeGroup ref="sportsml:eventStateSoccer" />
        <attribute name="kick-off-team-idref" type="IDREF" use="optional">
            <annotation>
                <documentation>Pointer to the team doing the kick-off for the period covered.</documentation>
            </annotation>
        </attribute>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
time-adjustment sportsml:time-adjustment 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id sportsml:id Optional
period-value sportsml:period-value Optional
period-time-elapsed sportsml:period-time-elapsed Optional
minutes-elapsed sportsml:minutes-elapsed Optional
period-minute-elapsed sportsml:period-minute-elapsed Optional
period-time-remaining sportsml:period-time-remaining Optional
kick-off-team-idref sportsml:kick-off-team-idref Optional
