Documentation for SportsML
Definition Type: Element
Name: event-metadata-tennis
Namespace: http://iptc.org/std/SportsML/2008-04-01/
Containing Schema: sportsml-specific-tennis.xsd
Abstract
Documentation:
Metadata about the specific tennis match. | When in the match this document was issued.

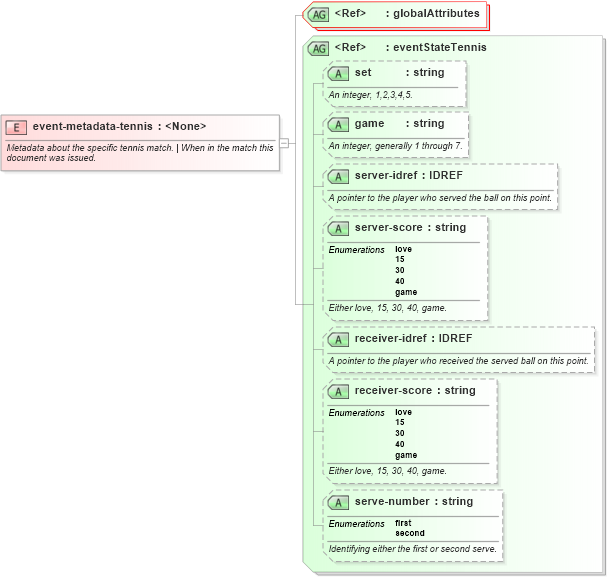

Collapse XSD Schema Diagram:
Drilldown into serve-number in schema sportsml-specific-tennis_xsd Drilldown into receiver-score in schema sportsml-specific-tennis_xsd Drilldown into receiver-idref in schema sportsml-specific-tennis_xsd Drilldown into server-score in schema sportsml-specific-tennis_xsd Drilldown into server-idref in schema sportsml-specific-tennis_xsd Drilldown into game in schema sportsml-specific-tennis_xsd Drilldown into set in schema sportsml-specific-tennis_xsd Drilldown into eventStateTennis in schema sportsml-specific-tennis_xsdXSD Diagram of event-metadata-tennis in schema sportsml-specific-tennis_xsd (SportsML)
Collapse XSD Schema Code:
<element name="event-metadata-tennis">
    <annotation>
        <documentation>Metadata about the specific tennis match. | When in the match this document was issued.</documentation>
    </annotation>
    <complexType>
        <attributeGroup ref="sportsml:globalAttributes" />
        <attributeGroup ref="sportsml:eventStateTennis" />
    </complexType>
</element>
Collapse Child Attributes:
Name Type Default Value Use
id sportsml:id Optional
set sportsml:set Optional
game sportsml:game Optional
server-idref sportsml:server-idref Optional
server-score sportsml:server-score Optional
receiver-idref sportsml:receiver-idref Optional
receiver-score sportsml:receiver-score Optional
serve-number sportsml:serve-number Optional
