Documentation for SportsML
Definition Type: Element
Name: from-src
Namespace: http://iptc.org/std/NITF/2006-10-18/
Containing Schema: nitf-3-4.xsd
Abstract
Collapse XSD Schema Diagram:

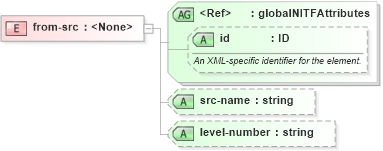

Drilldown into level-number in schema nitf-3-4_xsd Drilldown into src-name in schema nitf-3-4_xsd Drilldown into id in schema nitf-3-4_xsd Drilldown into globalNITFAttributes in schema nitf-3-4_xsdXSD Diagram of from-src in schema nitf-3-4_xsd (SportsML)
Collapse XSD Schema Code:
<element name="from-src">
    <complexType>
        <attributeGroup ref="nitf:globalNITFAttributes" />
        <attribute name="src-name" type="string" use="optional" />
        <attribute name="level-number" type="string" use="optional" />
    </complexType>
</element>
Collapse Child Attributes:
Name Type Default Value Use
id nitf:id Optional
src-name nitf:src-name Optional
level-number nitf:level-number Optional
