Documentation for SportsML
Definition Type: Element
Name: media
Namespace: http://iptc.org/std/NITF/2006-10-18/
Containing Schema: nitf-3-4.xsd
Abstract

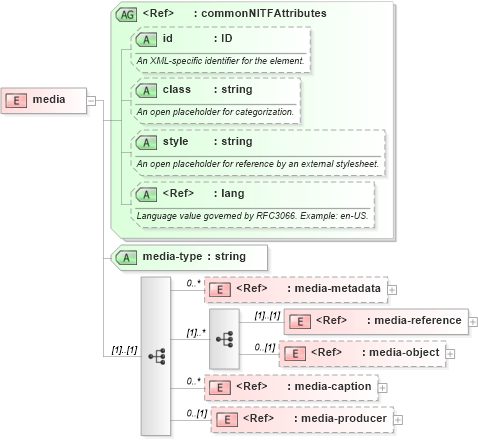

Collapse XSD Schema Diagram:
Drilldown into media-producer in schema nitf-3-4_xsd Drilldown into media-caption in schema nitf-3-4_xsd Drilldown into media-object in schema nitf-3-4_xsd Drilldown into media-reference in schema nitf-3-4_xsd Drilldown into media-metadata in schema nitf-3-4_xsd Drilldown into media-type in schema nitf-3-4_xsd Drilldown into lang in schema xml_xsd Drilldown into style in schema nitf-3-4_xsd Drilldown into class in schema nitf-3-4_xsd Drilldown into id in schema nitf-3-4_xsd Drilldown into commonNITFAttributes in schema nitf-3-4_xsdXSD Diagram of media in schema nitf-3-4_xsd (SportsML)
Collapse XSD Schema Code:
<element name="media">
    <complexType>
        <sequence>
            <element ref="nitf:media-metadata" minOccurs="0" maxOccurs="unbounded" />
            <sequence maxOccurs="unbounded">
                <element ref="nitf:media-reference" />
                <element ref="nitf:media-object" minOccurs="0" />
            </sequence>
            <element ref="nitf:media-caption" minOccurs="0" maxOccurs="unbounded" />
            <element ref="nitf:media-producer" minOccurs="0" />
        </sequence>
        <attributeGroup ref="nitf:commonNITFAttributes" />
        <attribute name="media-type" type="string" use="required" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
media-metadata nitf:media-metadata 0 unbounded
media-reference nitf:media-reference (1) (1)
media-object nitf:media-object 0 (1)
media-caption nitf:media-caption 0 unbounded
media-producer nitf:media-producer 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nitf:id Optional
class nitf:class Optional
style nitf:style Optional
lang nsA:lang Optional
media-type nitf:media-type Required
