Documentation for SportsML
Definition Type: Element
Name: ol
Namespace: http://iptc.org/std/NITF/2006-10-18/
Containing Schema: nitf-3-4.xsd
Abstract
Documentation:
An ordered list. Holds list items.

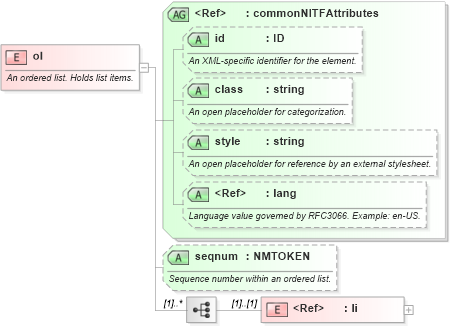

Collapse XSD Schema Diagram:
Drilldown into li in schema nitf-3-4_xsd Drilldown into seqnum in schema nitf-3-4_xsd Drilldown into lang in schema xml_xsd Drilldown into style in schema nitf-3-4_xsd Drilldown into class in schema nitf-3-4_xsd Drilldown into id in schema nitf-3-4_xsd Drilldown into commonNITFAttributes in schema nitf-3-4_xsdXSD Diagram of ol in schema nitf-3-4_xsd (SportsML)
Collapse XSD Schema Code:
<element name="ol">
    <annotation>
        <documentation>An ordered list. Holds list items.</documentation>
    </annotation>
    <complexType>
        <sequence maxOccurs="unbounded">
            <element ref="nitf:li" />
        </sequence>
        <attributeGroup ref="nitf:commonNITFAttributes" />
        <attribute name="seqnum" type="NMTOKEN" use="optional">
            <annotation>
                <documentation>Sequence number within an ordered list.</documentation>
            </annotation>
        </attribute>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
li nitf:li (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nitf:id Optional
class nitf:class Optional
style nitf:style Optional
lang nsA:lang Optional
seqnum nitf:seqnum Optional
