Documentation for SportsML
Definition Type: Element
Name: pubdata
Namespace: http://iptc.org/std/NITF/2006-10-18/
Containing Schema: nitf-3-4.xsd
Abstract

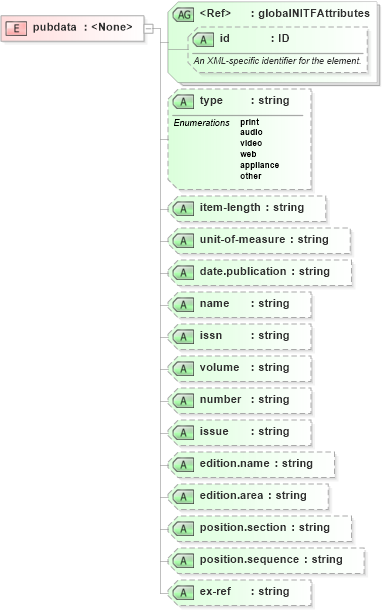

Collapse XSD Schema Diagram:
Drilldown into ex-ref in schema nitf-3-4_xsd Drilldown into position.sequence in schema nitf-3-4_xsd Drilldown into position.section in schema nitf-3-4_xsd Drilldown into edition.area in schema nitf-3-4_xsd Drilldown into edition.name in schema nitf-3-4_xsd Drilldown into issue in schema nitf-3-4_xsd Drilldown into number in schema nitf-3-4_xsd Drilldown into volume in schema nitf-3-4_xsd Drilldown into issn in schema nitf-3-4_xsd Drilldown into name in schema nitf-3-4_xsd Drilldown into date.publication in schema nitf-3-4_xsd Drilldown into unit-of-measure in schema nitf-3-4_xsd Drilldown into item-length in schema nitf-3-4_xsd Drilldown into type in schema nitf-3-4_xsd Drilldown into id in schema nitf-3-4_xsd Drilldown into globalNITFAttributes in schema nitf-3-4_xsdXSD Diagram of pubdata in schema nitf-3-4_xsd (SportsML)
Collapse XSD Schema Code:
<element name="pubdata">
    <complexType>
        <attributeGroup ref="nitf:globalNITFAttributes" />
        <attribute name="type" use="optional">
            <simpleType>
                <restriction base="string">
                    <enumeration value="print" />
                    <enumeration value="audio" />
                    <enumeration value="video" />
                    <enumeration value="web" />
                    <enumeration value="appliance" />
                    <enumeration value="other" />
                </restriction>
            </simpleType>
        </attribute>
        <attribute name="item-length" type="string" use="optional" />
        <attribute name="unit-of-measure" type="string" use="optional" />
        <attribute name="date.publication" type="string" use="optional" />
        <attribute name="name" type="string" use="optional" />
        <attribute name="issn" type="string" use="optional" />
        <attribute name="volume" type="string" use="optional" />
        <attribute name="number" type="string" use="optional" />
        <attribute name="issue" type="string" use="optional" />
        <attribute name="edition.name" type="string" use="optional" />
        <attribute name="edition.area" type="string" use="optional" />
        <attribute name="position.section" type="string" use="optional" />
        <attribute name="position.sequence" type="string" use="optional" />
        <attribute name="ex-ref" type="string" use="optional" />
    </complexType>
</element>
Collapse Child Attributes:
Name Type Default Value Use
id nitf:id Optional
type nitf:type Optional
item-length nitf:item-length Optional
unit-of-measure nitf:unit-of-measure Optional
date.publication nitf:date.publication Optional
name nitf:name Optional
issn nitf:issn Optional
volume nitf:volume Optional
number nitf:number Optional
issue nitf:issue Optional
edition.name nitf:edition.name Optional
edition.area nitf:edition.area Optional
position.section nitf:position.section Optional
position.sequence nitf:position.sequence Optional
ex-ref nitf:ex-ref Optional
