Documentation for SportsML
Definition Type: Element
Name: thead
Namespace: http://iptc.org/std/NITF/2006-10-18/
Containing Schema: nitf-3-4.xsd
Abstract

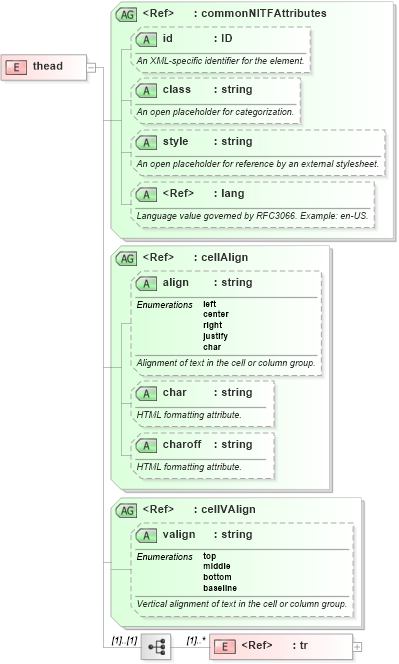

Collapse XSD Schema Diagram:
Drilldown into tr in schema nitf-3-4_xsd Drilldown into valign in schema nitf-3-4_xsd Drilldown into cellVAlign in schema nitf-3-4_xsd Drilldown into charoff in schema nitf-3-4_xsd Drilldown into char in schema nitf-3-4_xsd Drilldown into align in schema nitf-3-4_xsd Drilldown into cellAlign in schema nitf-3-4_xsd Drilldown into lang in schema xml_xsd Drilldown into style in schema nitf-3-4_xsd Drilldown into class in schema nitf-3-4_xsd Drilldown into id in schema nitf-3-4_xsd Drilldown into commonNITFAttributes in schema nitf-3-4_xsdXSD Diagram of thead in schema nitf-3-4_xsd (SportsML)
Collapse XSD Schema Code:
<element name="thead">
    <complexType>
        <sequence>
            <element ref="nitf:tr" maxOccurs="unbounded" />
        </sequence>
        <attributeGroup ref="nitf:commonNITFAttributes" />
        <attributeGroup ref="nitf:cellAlign" />
        <attributeGroup ref="nitf:cellVAlign" />
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tr nitf:tr (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nitf:id Optional
class nitf:class Optional
style nitf:style Optional
lang nsA:lang Optional
align nitf:align Optional
char nitf:char Optional
charoff nitf:charoff Optional
valign nitf:valign Optional
