Documentation for SportsML
Definition Type: Element
Name: tournament-metadata
Namespace: http://iptc.org/std/SportsML/2008-04-01/
Containing Schema: sportsml-core.xsd
Abstract
Documentation:
Background data about a tournament. | Where and when the this tournament took place.

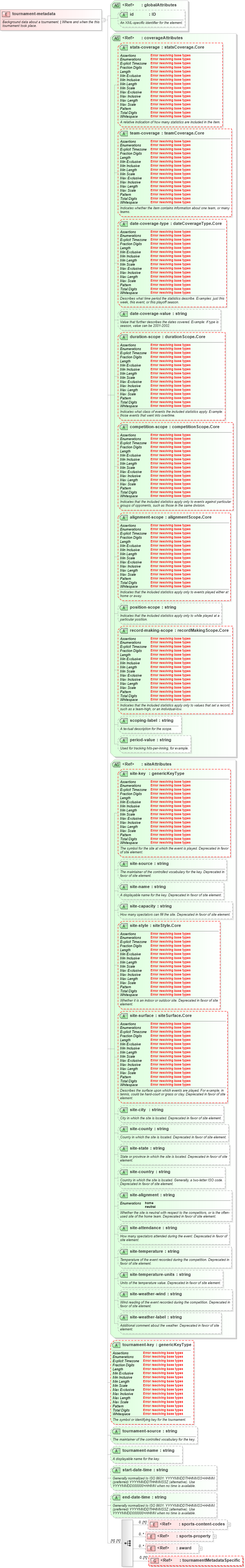

Collapse XSD Schema Diagram:
Drilldown into award in schema sportsml-core_xsd Drilldown into sports-property in schema sportsml-core_xsd Drilldown into sports-content-codes in schema sportsml-core_xsd Drilldown into end-date-time in schema sportsml-core_xsd Drilldown into start-date-time in schema sportsml-core_xsd Drilldown into tournament-name in schema sportsml-core_xsd Drilldown into tournament-source in schema sportsml-core_xsd Drilldown into tournament-key in schema sportsml-core_xsd Drilldown into site-weather-label in schema sportsml-core_xsd Drilldown into site-weather-wind in schema sportsml-core_xsd Drilldown into site-temperature-units in schema sportsml-core_xsd Drilldown into site-temperature in schema sportsml-core_xsd Drilldown into site-attendance in schema sportsml-core_xsd Drilldown into site-alignment in schema sportsml-core_xsd Drilldown into site-country in schema sportsml-core_xsd Drilldown into site-state in schema sportsml-core_xsd Drilldown into site-county in schema sportsml-core_xsd Drilldown into site-city in schema sportsml-core_xsd Drilldown into site-surface in schema sportsml-core_xsd Drilldown into site-style in schema sportsml-core_xsd Drilldown into site-capacity in schema sportsml-core_xsd Drilldown into site-name in schema sportsml-core_xsd Drilldown into site-source in schema sportsml-core_xsd Drilldown into site-key in schema sportsml-core_xsd Drilldown into siteAttributes in schema sportsml-core_xsd Drilldown into period-value in schema sportsml-core_xsd Drilldown into scoping-label in schema sportsml-core_xsd Drilldown into record-making-scope in schema sportsml-core_xsd Drilldown into position-scope in schema sportsml-core_xsd Drilldown into alignment-scope in schema sportsml-core_xsd Drilldown into competition-scope in schema sportsml-core_xsd Drilldown into duration-scope in schema sportsml-core_xsd Drilldown into date-coverage-value in schema sportsml-core_xsd Drilldown into date-coverage-type in schema sportsml-core_xsd Drilldown into team-coverage in schema sportsml-core_xsd Drilldown into stats-coverage in schema sportsml-core_xsd Drilldown into coverageAttributes in schema sportsml-core_xsd Drilldown into id in schema sportsml-core_xsd Drilldown into globalAttributes in schema sportsml-core_xsdXSD Diagram of tournament-metadata in schema sportsml-core_xsd (SportsML)
Collapse XSD Schema Code:
<element name="tournament-metadata">
    <annotation>
        <documentation>Background data about a tournament. | Where and when the this tournament took place.</documentation>
    </annotation>
    <complexType>
        <sequence>
            <element ref="sportsml:sports-content-codes" minOccurs="0" />
            <element ref="sportsml:sports-property" minOccurs="0" maxOccurs="unbounded" />
            <element ref="sportsml:award" minOccurs="0" maxOccurs="unbounded" />
            <group minOccurs="0" ref="sportsml:tournamentMetadataSpecific" />
        </sequence>
        <attributeGroup ref="sportsml:globalAttributes" />
        <attributeGroup ref="sportsml:coverageAttributes" />
        <attributeGroup ref="sportsml:siteAttributes" />
        <attribute name="tournament-key" type="sportsml:genericKeyType" use="optional">
            <annotation>
                <documentation>The symbol or identifying key for the tournament.</documentation>
            </annotation>
        </attribute>
        <attribute name="tournament-source" type="string" use="optional">
            <annotation>
                <documentation>The maintainer of the controlled vocabulary for the key.</documentation>
            </annotation>
        </attribute>
        <attribute name="tournament-name" type="string" use="optional">
            <annotation>
                <documentation>A displayable name for the key.</documentation>
            </annotation>
        </attribute>
        <attribute name="start-date-time" type="string" use="optional">
            <annotation>
                <documentation>Generally normalized to ISO 8601: YYYYMMDDTHHMMSS+HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000+HHMM when no time is available.</documentation>
            </annotation>
        </attribute>
        <attribute name="end-date-time" type="string" use="optional">
            <annotation>
                <documentation>Generally normalized to ISO 8601: YYYYMMDDTHHMMSS+HHMM (preferred) YYYYMMDDTHHMMSSZ (alternative). Use YYYYMMDD000000+HHMM when no time is available.</documentation>
            </annotation>
        </attribute>
    </complexType>
</element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sports-content-codes sportsml:sports-content-codes 0 (1)
sports-property sportsml:sports-property 0 unbounded
award sportsml:award 0 unbounded
tournament-metadata-golf sportsml:tournament-metadata-golf (1) (1)
tournament-metadata-tennis sportsml:tournament-metadata-tennis (1) (1)
<xs:group> sportsml:tournamentMetadataSpecific 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id sportsml:id Optional
stats-coverage sportsml:stats-coverage Optional
team-coverage sportsml:team-coverage Optional
date-coverage-type sportsml:date-coverage-type Optional
date-coverage-value sportsml:date-coverage-value Optional
duration-scope sportsml:duration-scope Optional
competition-scope sportsml:competition-scope Optional
alignment-scope sportsml:alignment-scope Optional
position-scope sportsml:position-scope Optional
record-making-scope sportsml:record-making-scope Optional
scoping-label sportsml:scoping-label Optional
period-value sportsml:period-value Optional
site-key sportsml:site-key Optional
site-source sportsml:site-source Optional
site-name sportsml:site-name Optional
site-capacity sportsml:site-capacity Optional
site-style sportsml:site-style Optional
site-surface sportsml:site-surface Optional
site-city sportsml:site-city Optional
site-county sportsml:site-county Optional
site-state sportsml:site-state Optional
site-country sportsml:site-country Optional
site-alignment sportsml:site-alignment Optional
site-attendance sportsml:site-attendance Optional
site-temperature sportsml:site-temperature Optional
site-temperature-units sportsml:site-temperature-units Optional
site-weather-wind sportsml:site-weather-wind Optional
site-weather-label sportsml:site-weather-label Optional
tournament-key sportsml:tournament-key Optional
tournament-source sportsml:tournament-source Optional
tournament-name sportsml:tournament-name Optional
start-date-time sportsml:start-date-time Optional
end-date-time sportsml:end-date-time Optional
