Documentation for SportsML
Definition Type: ComplexType
Name: base3StatsComplexType
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsA:base2StatsComplexType
Containing Schema: sportsml.xsd
Abstract
Documentation:
Extends base2stats. Further extended in genericEntitystats. Used directly by groupStats

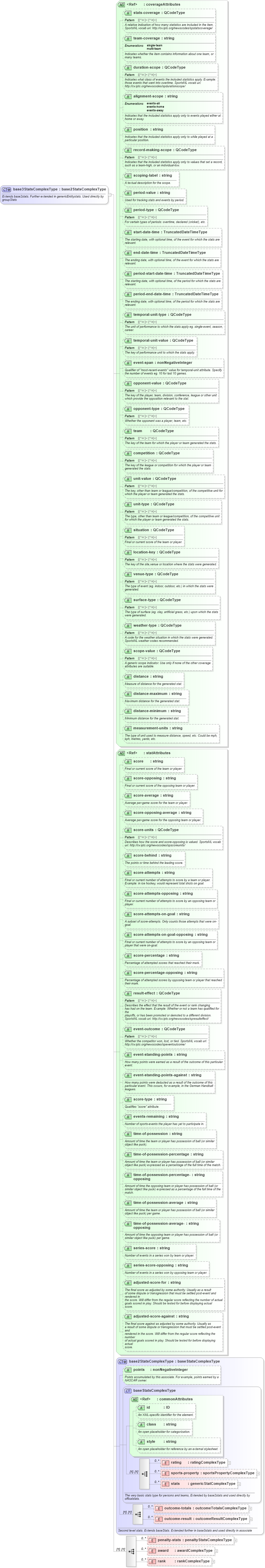

Collapse XSD Schema Diagram:
Drilldown into rank in schema sportsml_xsd Drilldown into award in schema sportsml_xsd Drilldown into penalty-stats in schema sportsml_xsd Drilldown into outcome-result in schema sportsml_xsd Drilldown into outcome-totals in schema sportsml_xsd Drilldown into stats in schema sportsml_xsd Drilldown into sports-property in schema sportsml_xsd Drilldown into rating in schema sportsml_xsd Drilldown into style in schema sportsml_xsd Drilldown into class in schema sportsml_xsd Drilldown into id in schema sportsml_xsd Drilldown into commonAttributes in schema sportsml_xsd Drilldown into baseStatsComplexType in schema sportsml_xsd Drilldown into points in schema sportsml_xsd Drilldown into base2StatsComplexType in schema sportsml_xsd Drilldown into adjusted-score-against in schema sportsml_xsd Drilldown into adjusted-score-for in schema sportsml_xsd Drilldown into series-score-opposing in schema sportsml_xsd Drilldown into series-score in schema sportsml_xsd Drilldown into time-of-possession-average-opposing in schema sportsml_xsd Drilldown into time-of-possession-average in schema sportsml_xsd Drilldown into time-of-possession-percentage-opposing in schema sportsml_xsd Drilldown into time-of-possession-percentage in schema sportsml_xsd Drilldown into time-of-possession in schema sportsml_xsd Drilldown into events-remaining in schema sportsml_xsd Drilldown into score-type in schema sportsml_xsd Drilldown into event-standing-points-against in schema sportsml_xsd Drilldown into event-standing-points in schema sportsml_xsd Drilldown into event-outcome in schema sportsml_xsd Drilldown into result-effect in schema sportsml_xsd Drilldown into score-percentage-opposing in schema sportsml_xsd Drilldown into score-percentage in schema sportsml_xsd Drilldown into score-attempts-on-goal-opposing in schema sportsml_xsd Drilldown into score-attempts-on-goal in schema sportsml_xsd Drilldown into score-attempts-opposing in schema sportsml_xsd Drilldown into score-attempts in schema sportsml_xsd Drilldown into score-behind in schema sportsml_xsd Drilldown into score-units in schema sportsml_xsd Drilldown into score-opposing-average in schema sportsml_xsd Drilldown into score-average in schema sportsml_xsd Drilldown into score-opposing in schema sportsml_xsd Drilldown into score in schema sportsml_xsd Drilldown into statAttributes in schema sportsml_xsd Drilldown into measurement-units in schema sportsml_xsd Drilldown into distance-minimum in schema sportsml_xsd Drilldown into distance-maximum in schema sportsml_xsd Drilldown into distance in schema sportsml_xsd Drilldown into scope-value in schema sportsml_xsd Drilldown into weather-type in schema sportsml_xsd Drilldown into surface-type in schema sportsml_xsd Drilldown into venue-type in schema sportsml_xsd Drilldown into location-key in schema sportsml_xsd Drilldown into situation in schema sportsml_xsd Drilldown into unit-type in schema sportsml_xsd Drilldown into unit-value in schema sportsml_xsd Drilldown into competition in schema sportsml_xsd Drilldown into team in schema sportsml_xsd Drilldown into opponent-type in schema sportsml_xsd Drilldown into opponent-value in schema sportsml_xsd Drilldown into event-span in schema sportsml_xsd Drilldown into temporal-unit-value in schema sportsml_xsd Drilldown into temporal-unit-type in schema sportsml_xsd Drilldown into period-end-date-time in schema sportsml_xsd Drilldown into period-start-date-time in schema sportsml_xsd Drilldown into end-date-time in schema sportsml_xsd Drilldown into start-date-time in schema sportsml_xsd Drilldown into period-type in schema sportsml_xsd Drilldown into period-value in schema sportsml_xsd Drilldown into scoping-label in schema sportsml_xsd Drilldown into record-making-scope in schema sportsml_xsd Drilldown into position in schema sportsml_xsd Drilldown into alignment-scope in schema sportsml_xsd Drilldown into duration-scope in schema sportsml_xsd Drilldown into team-coverage in schema sportsml_xsd Drilldown into stats-coverage in schema sportsml_xsd Drilldown into coverageAttributes in schema sportsml_xsdXSD Diagram of base3StatsComplexType in schema sportsml_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="base3StatsComplexType">
    <xs:annotation>
        <xs:documentation>Extends base2stats. Further extended in genericEntitystats. Used directly by groupStats</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="base2StatsComplexType">
            <xs:sequence>
                <xs:element name="penalty-stats" type="penaltyStatsComplexType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="award" type="awardComplexType" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="rank" type="rankComplexType" minOccurs="0" maxOccurs="unbounded" />
            </xs:sequence>
            <xs:attributeGroup ref="coverageAttributes" />
            <xs:attributeGroup ref="statAttributes" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
rating nsA:rating 0 unbounded
sports-property nsA:sports-property 0 unbounded
stats nsA:stats 0 unbounded
outcome-totals nsA:outcome-totals 0 unbounded
outcome-result nsA:outcome-result 0 unbounded
penalty-stats nsA:penalty-stats 0 unbounded
award nsA:award 0 unbounded
rank nsA:rank 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
class nsA:class Optional
style nsA:style Optional
points nsA:points Optional
stats-coverage nsA:stats-coverage Optional
team-coverage nsA:team-coverage Optional
duration-scope nsA:duration-scope Optional
alignment-scope nsA:alignment-scope Optional
position nsA:position Optional
record-making-scope nsA:record-making-scope Optional
scoping-label nsA:scoping-label Optional
period-value nsA:period-value Optional
period-type nsA:period-type Optional
start-date-time nsA:start-date-time Optional
end-date-time nsA:end-date-time Optional
period-start-date-time nsA:period-start-date-time Optional
period-end-date-time nsA:period-end-date-time Optional
temporal-unit-type nsA:temporal-unit-type Optional
temporal-unit-value nsA:temporal-unit-value Optional
event-span nsA:event-span Optional
opponent-value nsA:opponent-value Optional
opponent-type nsA:opponent-type Optional
team nsA:team Optional
competition nsA:competition Optional
unit-value nsA:unit-value Optional
unit-type nsA:unit-type Optional
situation nsA:situation Optional
location-key nsA:location-key Optional
venue-type nsA:venue-type Optional
surface-type nsA:surface-type Optional
weather-type nsA:weather-type Optional
scope-value nsA:scope-value Optional
distance nsA:distance Optional
distance-maximum nsA:distance-maximum Optional
distance-minimum nsA:distance-minimum Optional
measurement-units nsA:measurement-units Optional
score nsA:score Optional
score-opposing nsA:score-opposing Optional
score-average nsA:score-average Optional
score-opposing-average nsA:score-opposing-average Optional
score-units nsA:score-units Optional
score-behind nsA:score-behind Optional
score-attempts nsA:score-attempts Optional
score-attempts-opposing nsA:score-attempts-opposing Optional
score-attempts-on-goal nsA:score-attempts-on-goal Optional
score-attempts-on-goal-opposing nsA:score-attempts-on-goal-opposing Optional
score-percentage nsA:score-percentage Optional
score-percentage-opposing nsA:score-percentage-opposing Optional
result-effect nsA:result-effect Optional
event-outcome nsA:event-outcome Optional
event-standing-points nsA:event-standing-points Optional
event-standing-points-against nsA:event-standing-points-against Optional
score-type nsA:score-type Optional
events-remaining nsA:events-remaining Optional
time-of-possession nsA:time-of-possession Optional
time-of-possession-percentage nsA:time-of-possession-percentage Optional
time-of-possession-percentage-opposing nsA:time-of-possession-percentage-opposing Optional
time-of-possession-average nsA:time-of-possession-average Optional
time-of-possession-average-opposing nsA:time-of-possession-average-opposing Optional
series-score nsA:series-score Optional
series-score-opposing nsA:series-score-opposing Optional
adjusted-score-for nsA:adjusted-score-for Optional
adjusted-score-against nsA:adjusted-score-against Optional
Collapse Derivation Tree:
Collapse References:
nsA:baseGenericEntityStatsComplexType, nsA:groupStatsComplexType
