Documentation for SportsML
Definition Type: Element
Name: bit
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsA:QCodePropType
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
An individual concept, part of a composite concept expressed by a bag.

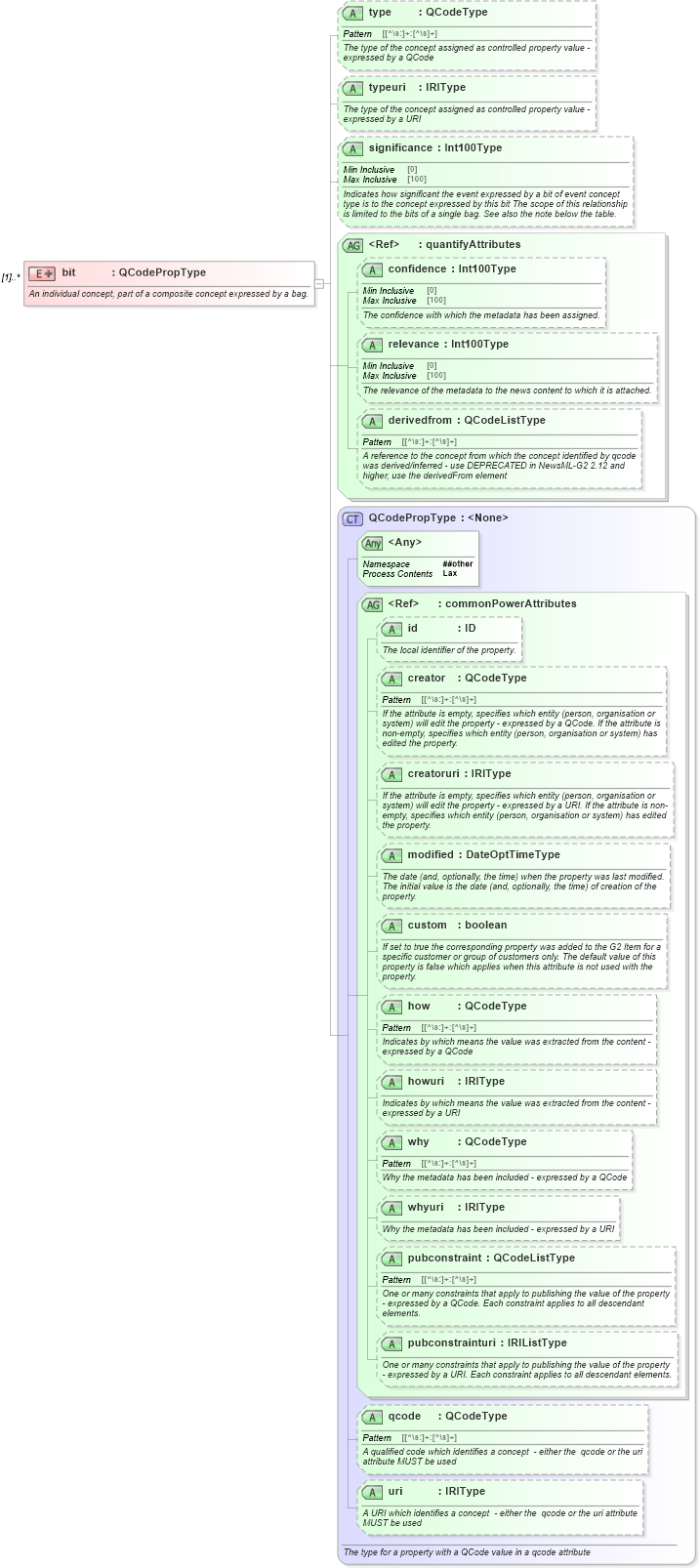

Collapse XSD Schema Diagram:
Drilldown into uri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into qcode in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into QCodePropType in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into derivedfrom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into relevance in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into confidence in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into quantifyAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into significance in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into typeuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into type in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of bit in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="bit" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>An individual concept, part of a composite concept expressed by a bag.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="QCodePropType">
                <xs:attribute name="type" type="QCodeType">
                    <xs:annotation>
                        <xs:documentation>The type of the concept assigned as controlled property value - expressed by a QCode</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="typeuri" type="IRIType">
                    <xs:annotation>
                        <xs:documentation>The type of the concept assigned as controlled property value - expressed by a URI</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="significance" type="Int100Type">
                    <xs:annotation>
                        <xs:documentation> Indicates how significant the event expressed by a bit of event concept type is to the concept expressed by this bit The scope of this relationship is limited to the bits of a single bag. See also the note below the table.</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attributeGroup ref="quantifyAttributes" />
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
qcode nsA:qcode (Optional)
uri nsA:uri Optional
type nsA:type (Optional)
typeuri nsA:typeuri (Optional)
significance nsA:significance (Optional)
confidence nsA:confidence Optional
relevance nsA:relevance Optional
derivedfrom nsA:derivedfrom Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
