Definition Type: Element
Name: catalogRef
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
A reference to a remote catalog. A hyperlink to a set of scheme alias declarations.

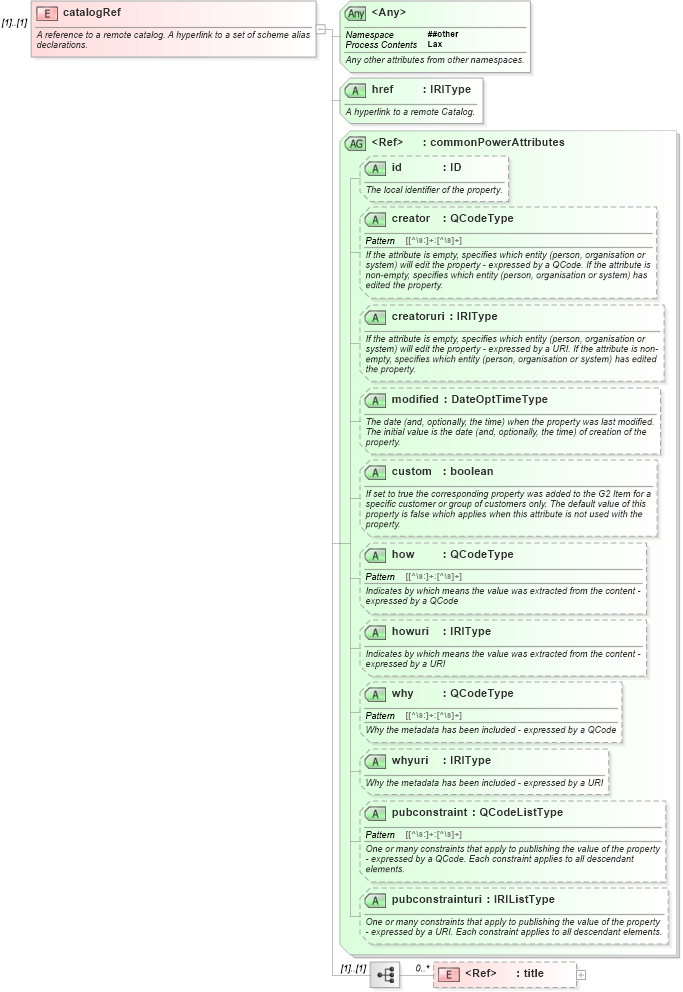

Collapse XSD Schema Diagram:
Drilldown into title in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into href in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of catalogRef in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="catalogRef">
    <xs:annotation>
        <xs:documentation>A reference to a remote catalog. A hyperlink to a set of scheme alias declarations.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="title" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>A short natural language name for the catalog.</xs:documentation>
                </xs:annotation>
            </xs:element>
        </xs:sequence>
        <xs:attribute name="href" type="IRIType" use="required">
            <xs:annotation>
                <xs:documentation>A hyperlink to a remote Catalog.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attributeGroup ref="commonPowerAttributes" />
        <xs:anyAttribute namespace="##other" processContents="lax">
            <xs:annotation>
                <xs:documentation>Any other attributes from other namespaces.</xs:documentation>
            </xs:annotation>
        </xs:anyAttribute>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
title nsA:title 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
href nsA:href Required
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
<anyAttribute> Allowed namespace: '##other'
