Documentation for SportsML
Definition Type: ComplexType
Name: ConceptIdType
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
The type for a preferred unambiguous identifier for the concept.

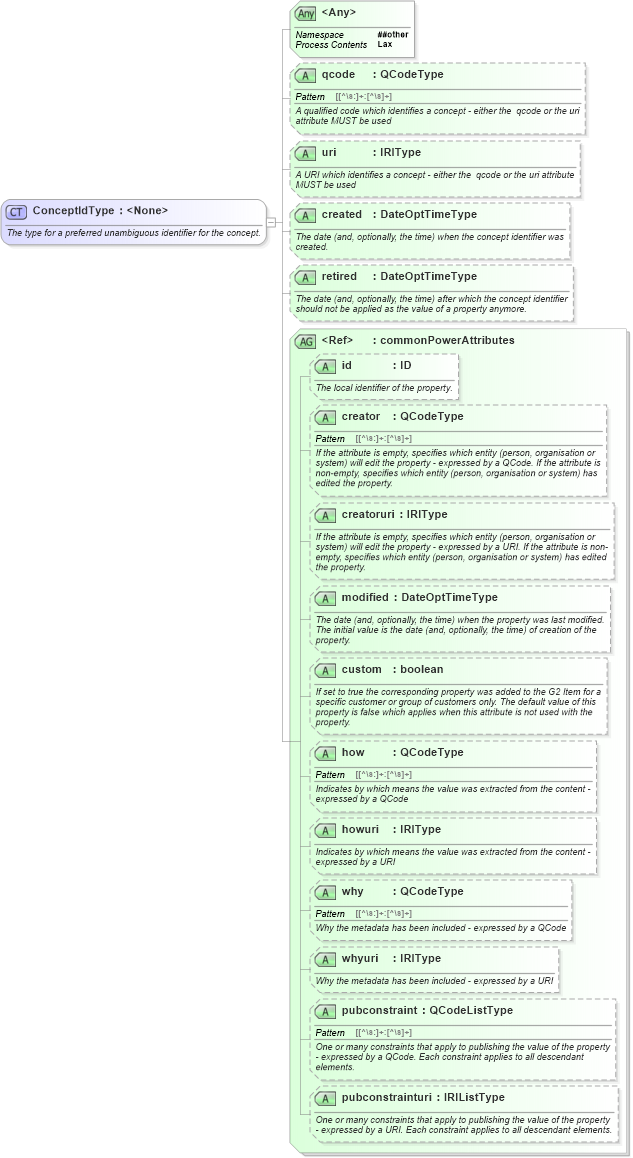

Collapse XSD Schema Diagram:
Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into retired in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into created in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into uri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into qcode in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of ConceptIdType in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="ConceptIdType">
    <xs:annotation>
        <xs:documentation>The type for a preferred unambiguous identifier for the concept.</xs:documentation>
    </xs:annotation>
    <xs:attribute name="qcode" type="QCodeType">
        <xs:annotation>
            <xs:documentation>A qualified code which identifies a concept - either the  qcode or the uri attribute MUST be used</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="uri" type="IRIType" use="optional">
        <xs:annotation>
            <xs:documentation>A URI which identifies a concept - either the  qcode or the uri attribute MUST be used</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="created" type="DateOptTimeType" use="optional">
        <xs:annotation>
            <xs:documentation>The date (and, optionally, the time) when the concept identifier was created.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="retired" type="DateOptTimeType" use="optional">
        <xs:annotation>
            <xs:documentation>The date (and, optionally, the time) after which the concept identifier should not be applied as the value of a property anymore.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attributeGroup ref="commonPowerAttributes" />
    <xs:anyAttribute namespace="##other" processContents="lax" />
</xs:complexType>
Collapse Child Attributes:
Name Type Default Value Use
qcode nsA:qcode (Optional)
uri nsA:uri Optional
created nsA:created Optional
retired nsA:retired Optional
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:conceptId
