Documentation for SportsML
Definition Type: ComplexType
Name: ElectronicAddressType
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: string:http://www.w3.org/2001/XMLSchema
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
The type for an electronic address

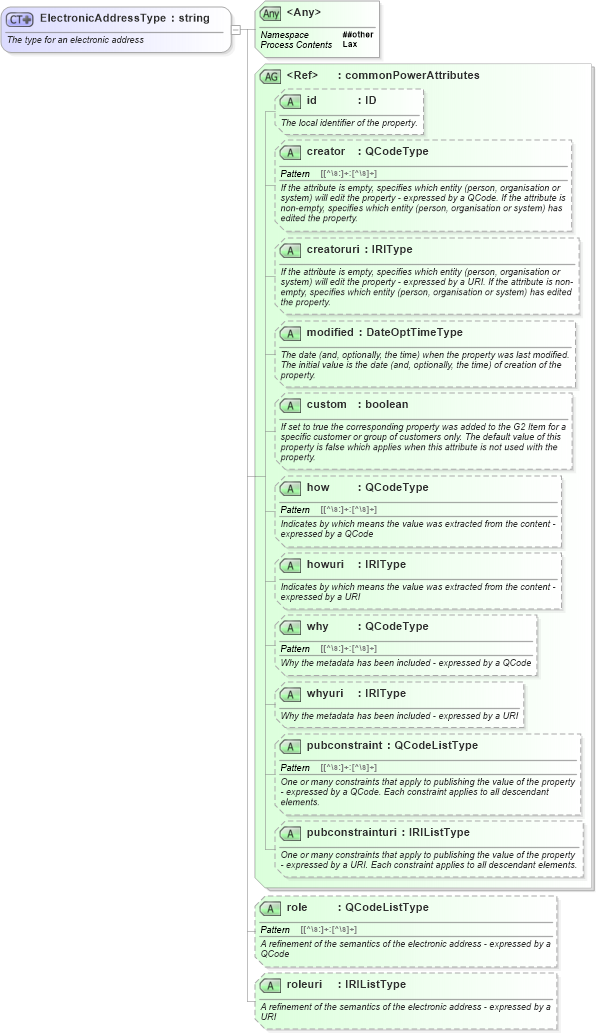

Collapse XSD Schema Diagram:
Drilldown into roleuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into role in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of ElectronicAddressType in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="ElectronicAddressType">
    <xs:annotation>
        <xs:documentation>The type for an electronic address</xs:documentation>
    </xs:annotation>
    <xs:simpleContent>
        <xs:extension base="xs:string">
            <xs:attributeGroup ref="commonPowerAttributes" />
            <xs:attribute name="role" use="optional" type="QCodeListType">
                <xs:annotation>
                    <xs:documentation>A refinement of the semantics of the electronic address - expressed by a QCode</xs:documentation>
                </xs:annotation>
            </xs:attribute>
            <xs:attribute name="roleuri" use="optional" type="IRIListType">
                <xs:annotation>
                    <xs:documentation>A refinement of the semantics of the electronic address - expressed by a URI</xs:documentation>
                </xs:annotation>
            </xs:attribute>
            <xs:anyAttribute namespace="##other" processContents="lax" />
        </xs:extension>
    </xs:simpleContent>
</xs:complexType>
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
role nsA:role Optional
roleuri nsA:roleuri Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:email, nsA:fax
