Documentation for SportsML
Definition Type: ComplexType
Name: eventMetadataComplexType
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsA:baseEventMetadataComplexType
Containing Schema: sportsml.xsd
Abstract
Documentation:
Background information about a game. | Where, when, and what an event is.

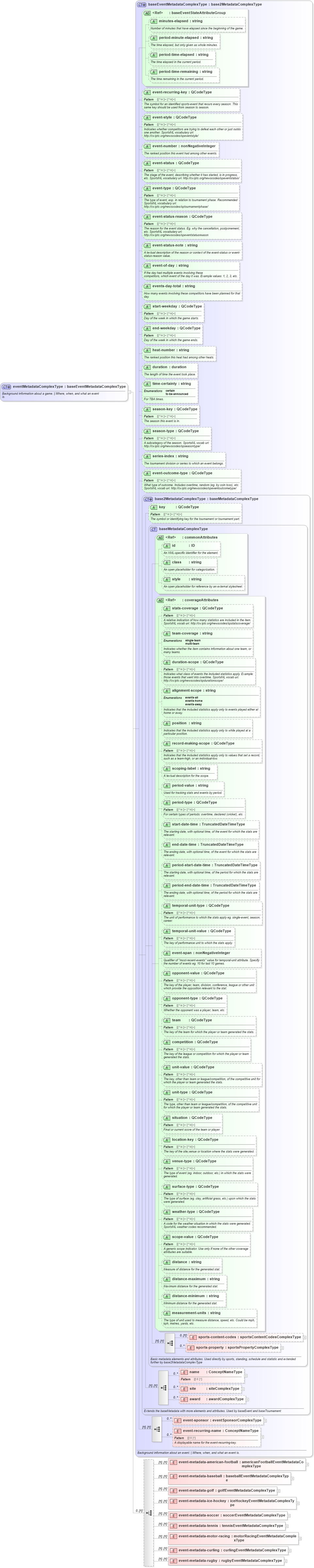

Collapse XSD Schema Diagram:
Drilldown into event-metadata-rugby in schema sportsml_xsd Drilldown into event-metadata-curling in schema sportsml_xsd Drilldown into event-metadata-motor-racing in schema sportsml_xsd Drilldown into event-metadata-tennis in schema sportsml_xsd Drilldown into event-metadata-soccer in schema sportsml_xsd Drilldown into event-metadata-ice-hockey in schema sportsml_xsd Drilldown into event-metadata-golf in schema sportsml_xsd Drilldown into event-metadata-baseball in schema sportsml_xsd Drilldown into event-metadata-american-football in schema sportsml_xsd Drilldown into event-recurring-name in schema sportsml_xsd Drilldown into event-sponsor in schema sportsml_xsd Drilldown into award in schema sportsml_xsd Drilldown into site in schema sportsml_xsd Drilldown into name in schema sportsml_xsd Drilldown into sports-property in schema sportsml_xsd Drilldown into sports-content-codes in schema sportsml_xsd Drilldown into measurement-units in schema sportsml_xsd Drilldown into distance-minimum in schema sportsml_xsd Drilldown into distance-maximum in schema sportsml_xsd Drilldown into distance in schema sportsml_xsd Drilldown into scope-value in schema sportsml_xsd Drilldown into weather-type in schema sportsml_xsd Drilldown into surface-type in schema sportsml_xsd Drilldown into venue-type in schema sportsml_xsd Drilldown into location-key in schema sportsml_xsd Drilldown into situation in schema sportsml_xsd Drilldown into unit-type in schema sportsml_xsd Drilldown into unit-value in schema sportsml_xsd Drilldown into competition in schema sportsml_xsd Drilldown into team in schema sportsml_xsd Drilldown into opponent-type in schema sportsml_xsd Drilldown into opponent-value in schema sportsml_xsd Drilldown into event-span in schema sportsml_xsd Drilldown into temporal-unit-value in schema sportsml_xsd Drilldown into temporal-unit-type in schema sportsml_xsd Drilldown into period-end-date-time in schema sportsml_xsd Drilldown into period-start-date-time in schema sportsml_xsd Drilldown into end-date-time in schema sportsml_xsd Drilldown into start-date-time in schema sportsml_xsd Drilldown into period-type in schema sportsml_xsd Drilldown into period-value in schema sportsml_xsd Drilldown into scoping-label in schema sportsml_xsd Drilldown into record-making-scope in schema sportsml_xsd Drilldown into position in schema sportsml_xsd Drilldown into alignment-scope in schema sportsml_xsd Drilldown into duration-scope in schema sportsml_xsd Drilldown into team-coverage in schema sportsml_xsd Drilldown into stats-coverage in schema sportsml_xsd Drilldown into coverageAttributes in schema sportsml_xsd Drilldown into style in schema sportsml_xsd Drilldown into class in schema sportsml_xsd Drilldown into id in schema sportsml_xsd Drilldown into commonAttributes in schema sportsml_xsd Drilldown into baseMetadataComplexType in schema sportsml_xsd Drilldown into key in schema sportsml_xsd Drilldown into base2MetadataComplexType in schema sportsml_xsd Drilldown into event-outcome-type in schema sportsml_xsd Drilldown into series-index in schema sportsml_xsd Drilldown into season-type in schema sportsml_xsd Drilldown into season-key in schema sportsml_xsd Drilldown into time-certainty in schema sportsml_xsd Drilldown into duration in schema sportsml_xsd Drilldown into heat-number in schema sportsml_xsd Drilldown into end-weekday in schema sportsml_xsd Drilldown into start-weekday in schema sportsml_xsd Drilldown into events-day-total in schema sportsml_xsd Drilldown into event-of-day in schema sportsml_xsd Drilldown into event-status-note in schema sportsml_xsd Drilldown into event-status-reason in schema sportsml_xsd Drilldown into event-type in schema sportsml_xsd Drilldown into event-status in schema sportsml_xsd Drilldown into event-number in schema sportsml_xsd Drilldown into event-style in schema sportsml_xsd Drilldown into event-recurring-key in schema sportsml_xsd Drilldown into period-time-remaining in schema sportsml_xsd Drilldown into period-time-elapsed in schema sportsml_xsd Drilldown into period-minute-elapsed in schema sportsml_xsd Drilldown into minutes-elapsed in schema sportsml_xsd Drilldown into baseEventStateAttributeGroup in schema sportsml_xsd Drilldown into baseEventMetadataComplexType in schema sportsml_xsdXSD Diagram of eventMetadataComplexType in schema sportsml_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="eventMetadataComplexType">
    <xs:annotation>
        <xs:documentation>Background information about a game. | Where, when, and what an event
                is.</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="baseEventMetadataComplexType">
            <xs:choice minOccurs="0">
                <xs:element name="event-metadata-american-football" type="americanFootballEventMetadataComplexType" />
                <xs:element name="event-metadata-baseball" type="baseballEventMetadataComplexType" />
                <xs:element name="event-metadata-golf" type="golfEventMetadataComplexType" />
                <xs:element name="event-metadata-ice-hockey" type="iceHockeyEventMetadataComplexType" />
                <xs:element name="event-metadata-soccer" type="soccerEventMetadataComplexType" />
                <xs:element name="event-metadata-tennis" type="tennisEventMetadataComplexType" />
                <xs:element name="event-metadata-motor-racing" type="motorRacingEventMetadataComplexType" />
                <xs:element name="event-metadata-curling" type="curlingEventMetadataComplexType" />
                <xs:element name="event-metadata-rugby" type="rugbyEventMetadataComplexType" />
            </xs:choice>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sports-content-codes nsA:sports-content-codes 0 (1)
sports-property nsA:sports-property 0 unbounded
name nsA:name 0 unbounded
site nsA:site 0 unbounded
award nsA:award 0 unbounded
event-sponsor nsA:event-sponsor 0 unbounded
event-recurring-name nsA:event-recurring-name 0 unbounded
event-metadata-american-football nsA:event-metadata-american-football (1) (1)
event-metadata-baseball nsA:event-metadata-baseball (1) (1)
event-metadata-golf nsA:event-metadata-golf (1) (1)
event-metadata-ice-hockey nsA:event-metadata-ice-hockey (1) (1)
event-metadata-soccer nsA:event-metadata-soccer (1) (1)
event-metadata-tennis nsA:event-metadata-tennis (1) (1)
event-metadata-motor-racing nsA:event-metadata-motor-racing (1) (1)
event-metadata-curling nsA:event-metadata-curling (1) (1)
event-metadata-rugby nsA:event-metadata-rugby (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
class nsA:class Optional
style nsA:style Optional
stats-coverage nsA:stats-coverage Optional
team-coverage nsA:team-coverage Optional
duration-scope nsA:duration-scope Optional
alignment-scope nsA:alignment-scope Optional
position nsA:position Optional
record-making-scope nsA:record-making-scope Optional
scoping-label nsA:scoping-label Optional
period-value nsA:period-value Optional
period-type nsA:period-type Optional
start-date-time nsA:start-date-time Optional
end-date-time nsA:end-date-time Optional
period-start-date-time nsA:period-start-date-time Optional
period-end-date-time nsA:period-end-date-time Optional
temporal-unit-type nsA:temporal-unit-type Optional
temporal-unit-value nsA:temporal-unit-value Optional
event-span nsA:event-span Optional
opponent-value nsA:opponent-value Optional
opponent-type nsA:opponent-type Optional
team nsA:team Optional
competition nsA:competition Optional
unit-value nsA:unit-value Optional
unit-type nsA:unit-type Optional
situation nsA:situation Optional
location-key nsA:location-key Optional
venue-type nsA:venue-type Optional
surface-type nsA:surface-type Optional
weather-type nsA:weather-type Optional
scope-value nsA:scope-value Optional
distance nsA:distance Optional
distance-maximum nsA:distance-maximum Optional
distance-minimum nsA:distance-minimum Optional
measurement-units nsA:measurement-units Optional
key nsA:key Optional
minutes-elapsed nsA:minutes-elapsed Optional
period-minute-elapsed nsA:period-minute-elapsed Optional
period-time-elapsed nsA:period-time-elapsed Optional
period-time-remaining nsA:period-time-remaining Optional
event-recurring-key nsA:event-recurring-key Optional
event-style nsA:event-style Optional
event-number nsA:event-number Optional
event-status nsA:event-status Optional
event-type nsA:event-type Optional
event-status-reason nsA:event-status-reason Optional
event-status-note nsA:event-status-note Optional
event-of-day nsA:event-of-day Optional
events-day-total nsA:events-day-total Optional
start-weekday nsA:start-weekday Optional
end-weekday nsA:end-weekday Optional
heat-number nsA:heat-number Optional
duration nsA:duration Optional
time-certainty nsA:time-certainty Optional
season-key nsA:season-key Optional
season-type nsA:season-type Optional
series-index nsA:series-index Optional
event-outcome-type nsA:event-outcome-type Optional
Collapse Derivation Tree:
Collapse References:
nsA:event-metadata
