Documentation for SportsML
Definition Type: Element
Name: facet
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsA:FlexPropType
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
In NAR 1.8 and later, facet is deprecated and SHOULD NOT (see RFC 2119) be used, the "related" property should be used instead (was: An intrinsic property of the concept.)

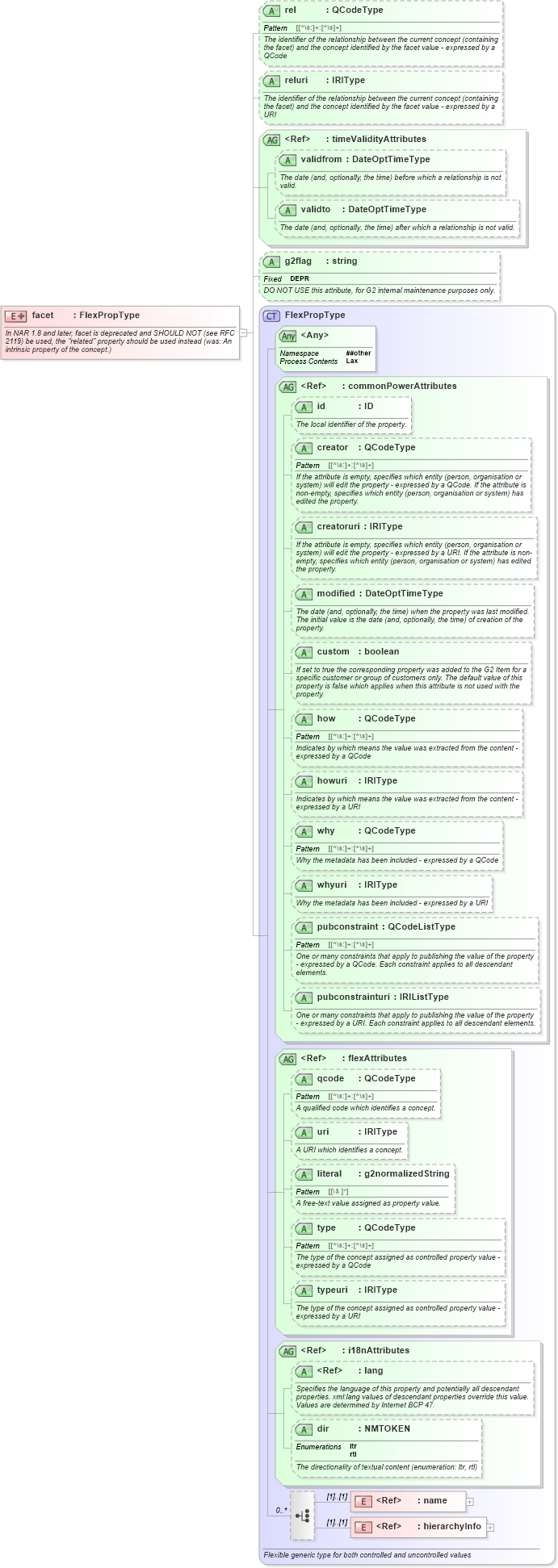

Collapse XSD Schema Diagram:
Drilldown into hierarchyInfo in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into name in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into dir in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into in schema Drilldown into i18nAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into typeuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into type in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into literal in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into uri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into qcode in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into flexAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into FlexPropType in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into g2flag in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into validto in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into validfrom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into timeValidityAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into reluri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into rel in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of facet in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="facet">
    <xs:annotation>
        <xs:documentation>In NAR 1.8 and later, facet is deprecated and SHOULD NOT (see RFC 2119) be used, the "related" property should be used instead (was: An intrinsic property of the concept.)</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="FlexPropType">
                <xs:attribute name="rel" type="QCodeType" use="optional">
                    <xs:annotation>
                        <xs:documentation>The identifier of the relationship between the current concept (containing the facet) and the concept identified by the facet value - expressed by a QCode</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="reluri" type="IRIType" use="optional">
                    <xs:annotation>
                        <xs:documentation>The identifier of the relationship between the current concept (containing the facet) and the concept identified by the facet value - expressed by a URI</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attributeGroup ref="timeValidityAttributes" />
                <xs:attribute name="g2flag" type="xs:string" use="optional" fixed="DEPR">
                    <xs:annotation>
                        <xs:documentation>DO NOT USE this attribute, for G2 internal maintenance purposes only.</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name (1) (1)
hierarchyInfo nsA:hierarchyInfo (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
qcode nsA:qcode Optional
uri nsA:uri Optional
literal nsA:literal Optional
type nsA:type Optional
typeuri nsA:typeuri Optional
lang Unresolved link to lang Optional
dir nsA:dir Optional
rel nsA:rel Optional
reluri nsA:reluri Optional
validfrom nsA:validfrom Optional
validto nsA:validto Optional
g2flag nsA:g2flag Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
