Definition Type: Element
Name: geoAreaDetails
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
A group of properties specific to a geopolitical area

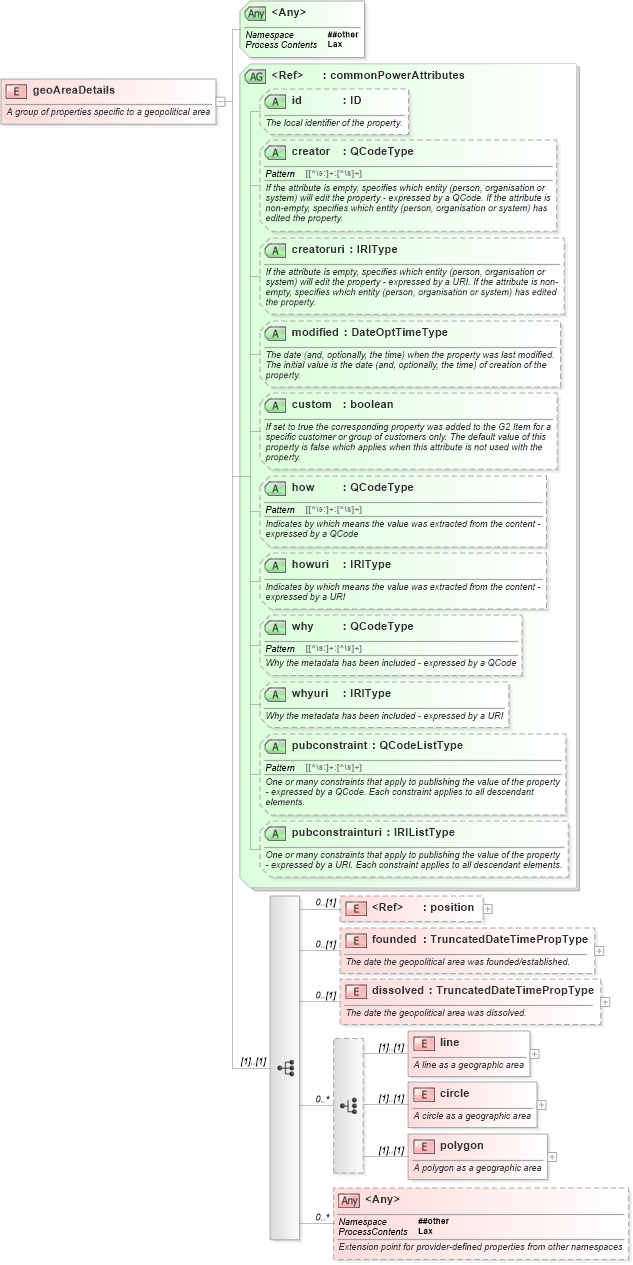

Collapse XSD Schema Diagram:
Drilldown into polygon in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into circle in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into line in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into dissolved in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into founded in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into position in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of geoAreaDetails in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="geoAreaDetails">
    <xs:annotation>
        <xs:documentation>A group of properties specific to a geopolitical area</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element ref="position" minOccurs="0" />
            <xs:element name="founded" type="TruncatedDateTimePropType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The date the geopolitical area was founded/established.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="dissolved" type="TruncatedDateTimePropType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The date the geopolitical area was dissolved.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:choice minOccurs="0" maxOccurs="unbounded">
                <xs:element name="line">
                    <xs:annotation>
                        <xs:documentation>A line as a geographic area</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element ref="position" maxOccurs="unbounded" />
                        </xs:sequence>
                        <xs:attributeGroup ref="commonPowerAttributes" />
                    </xs:complexType>
                </xs:element>
                <xs:element name="circle">
                    <xs:annotation>
                        <xs:documentation>A circle as a geographic area</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element ref="position" />
                        </xs:sequence>
                        <xs:attributeGroup ref="commonPowerAttributes" />
                        <xs:attribute name="radius" type="xs:double" use="required">
                            <xs:annotation>
                                <xs:documentation>The radius of the circle</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:attribute name="radunit" type="QCodeType">
                            <xs:annotation>
                                <xs:documentation>The dimension unit of the radius - expressed by a QCode / either the radunit or the radunituri attribute MUST be used</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:attribute name="radunituri" type="IRIType">
                            <xs:annotation>
                                <xs:documentation>The dimension unit of the radius - expressed by a URI / either the radunit or the radunituri attribute MUST be used</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                    </xs:complexType>
                </xs:element>
                <xs:element name="polygon">
                    <xs:annotation>
                        <xs:documentation>A polygon as a geographic area</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element ref="position" maxOccurs="unbounded" />
                        </xs:sequence>
                        <xs:attributeGroup ref="commonPowerAttributes" />
                    </xs:complexType>
                </xs:element>
            </xs:choice>
            <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
                </xs:annotation>
            </xs:any>
        </xs:sequence>
        <xs:attributeGroup ref="commonPowerAttributes" />
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
position nsA:position 0 (1)
founded nsA:founded 0 (1)
dissolved nsA:dissolved 0 (1)
line nsA:line (1) (1)
circle nsA:circle (1) (1)
polygon nsA:polygon (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
<anyAttribute> Allowed namespace: '##other'
