Documentation for SportsML
Definition Type: ComplexType
Name: GeoCoordinatesType
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
The type for geographic coordinates (Type defined in this XML Schema only)

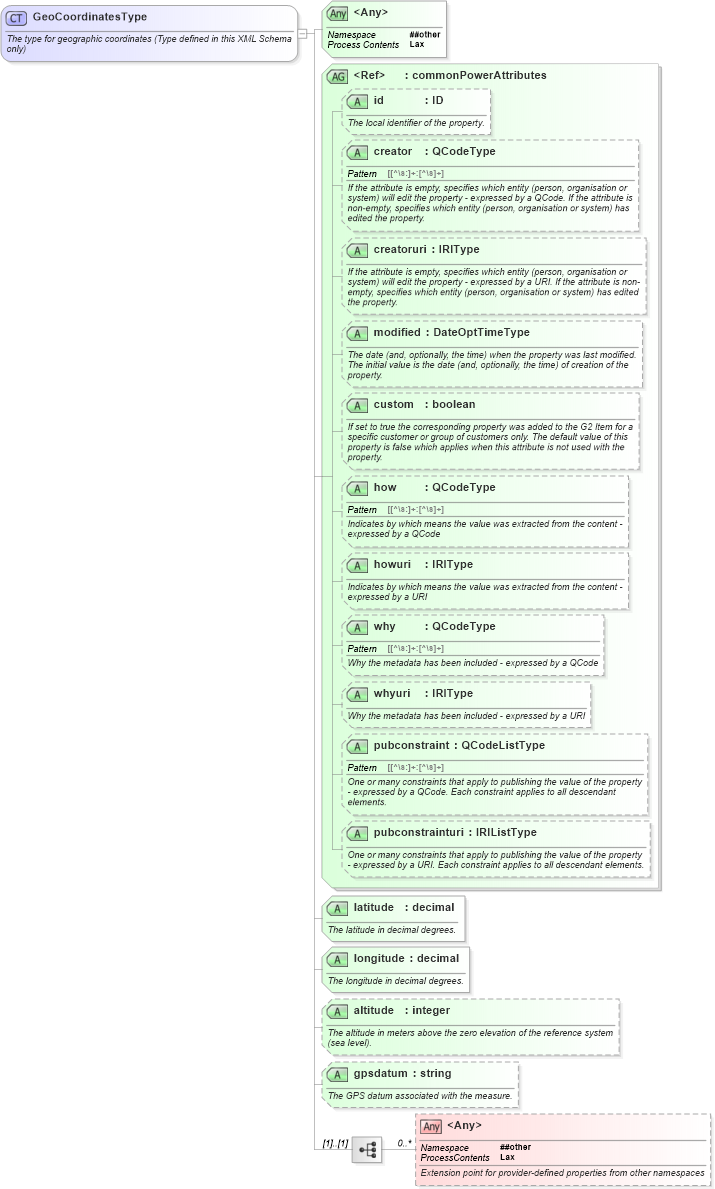

Collapse XSD Schema Diagram:
Drilldown into gpsdatum in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into altitude in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into longitude in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into latitude in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of GeoCoordinatesType in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="GeoCoordinatesType">
    <xs:annotation>
        <xs:documentation>The type for geographic coordinates (Type defined in this XML Schema only)</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
            </xs:annotation>
        </xs:any>
    </xs:sequence>
    <xs:attributeGroup ref="commonPowerAttributes" />
    <xs:attribute name="latitude" type="xs:decimal" use="required">
        <xs:annotation>
            <xs:documentation>The latitude in decimal degrees.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="longitude" type="xs:decimal" use="required">
        <xs:annotation>
            <xs:documentation>The longitude in decimal degrees.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="altitude" type="xs:integer" use="optional">
        <xs:annotation>
            <xs:documentation>The altitude in meters above the zero elevation of the reference system (sea level).</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="gpsdatum" type="xs:string" use="optional">
        <xs:annotation>
            <xs:documentation>The GPS datum associated with the measure.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:anyAttribute namespace="##other" processContents="lax" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
latitude nsA:latitude Required
longitude nsA:longitude Required
altitude nsA:altitude Optional
gpsdatum nsA:gpsdatum Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:position, nsA:position
