Documentation for SportsML
Definition Type: ComplexType
Name: groupComplexType
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: sportsml.xsd
Abstract
Documentation:
A holder for statistics about a particular bracket or division or conference or league. | Holds metadata and stats. Also appropriate for expressing general organization/league membership and structure.

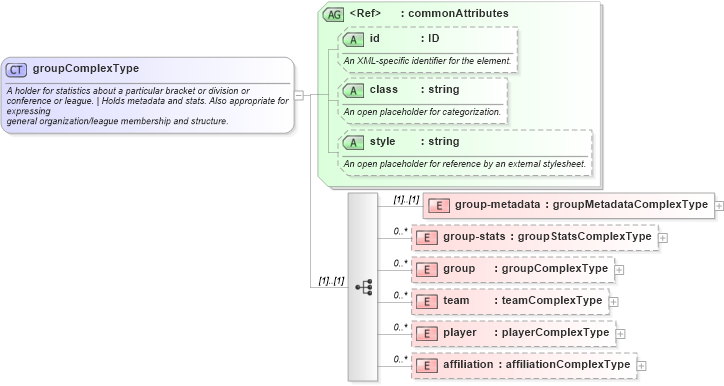

Collapse XSD Schema Diagram:
Drilldown into affiliation in schema sportsml_xsd Drilldown into player in schema sportsml_xsd Drilldown into team in schema sportsml_xsd Drilldown into group in schema sportsml_xsd Drilldown into group-stats in schema sportsml_xsd Drilldown into group-metadata in schema sportsml_xsd Drilldown into style in schema sportsml_xsd Drilldown into class in schema sportsml_xsd Drilldown into id in schema sportsml_xsd Drilldown into commonAttributes in schema sportsml_xsdXSD Diagram of groupComplexType in schema sportsml_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="groupComplexType">
    <xs:annotation>
        <xs:documentation>A holder for statistics about a particular bracket or division or
                conference or league. | Holds metadata and stats. Also appropriate for expressing
                general organization/league membership and structure.</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="group-metadata" type="groupMetadataComplexType" />
        <xs:element name="group-stats" type="groupStatsComplexType" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="group" type="groupComplexType" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="team" type="teamComplexType" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="player" type="playerComplexType" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="affiliation" type="affiliationComplexType" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attributeGroup ref="commonAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
group-metadata nsA:group-metadata (1) (1)
group-stats nsA:group-stats 0 unbounded
group nsA:group 0 unbounded
team nsA:team 0 unbounded
player nsA:player 0 unbounded
affiliation nsA:affiliation 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
class nsA:class Optional
style nsA:style Optional
Collapse Derivation Tree:
Collapse References:
nsA:group, nsA:group
