Docs for schema item groupRef in SportsML

Documentation for SportsML

Definition Type:	Element
Name:	groupRef
Namespace:	http://iptc.org/std/nar/2006-10-01/
Containing Schema:	NewsML-G2_2.22-spec-All-Power.xsd
MinOccurs	(1)
MaxOccurs	(1)
Abstract
Documentation:	A reference to a group local to the package

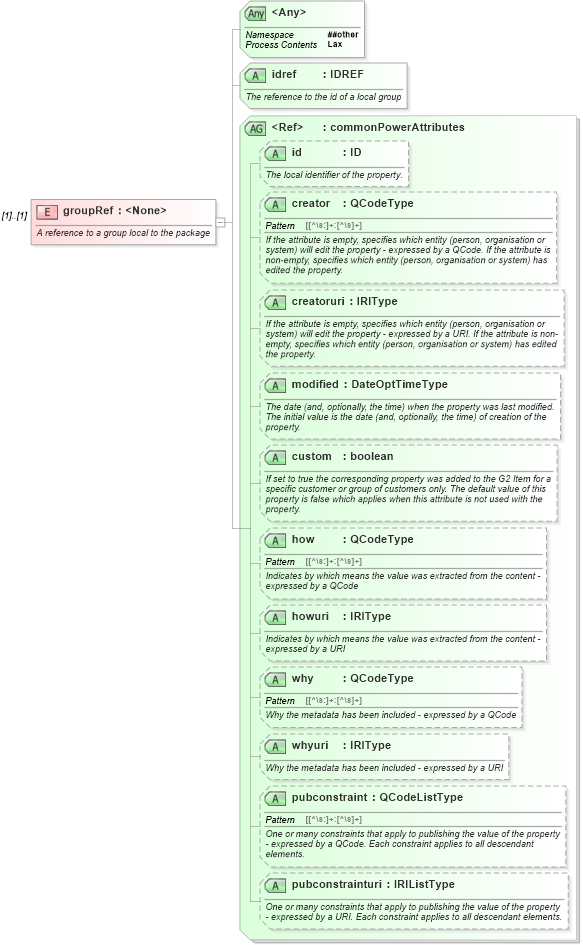

XSD Schema Diagram:

XSD Diagram of groupRef in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)

XSD Schema Code:

<xs:element name="groupRef">
    <xs:annotation>
        <xs:documentation>A reference to a group local to the package</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:attribute name="idref" type="xs:IDREF" use="required">
            <xs:annotation>
                <xs:documentation>The reference to the id of a local group</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attributeGroup ref="commonPowerAttributes" />
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>

Child Attributes:

Name	Type	Default Value	Use
idref	nsA:idref		Required
id	nsA:id		Optional
creator	nsA:creator		Optional
creatoruri	nsA:creatoruri		Optional
modified	nsA:modified		Optional
custom	nsA:custom		Optional
how	nsA:how		Optional
howuri	nsA:howuri		Optional
why	nsA:why		Optional
whyuri	nsA:whyuri		Optional
pubconstraint	nsA:pubconstraint		Optional
pubconstrainturi	nsA:pubconstrainturi		Optional
<anyAttribute>	Allowed namespace: '##other'
