Definition Type: Element
Name: hash
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: string:http://www.w3.org/2001/XMLSchema
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
Hash value of parts of an item as defined by the hashscope attribute

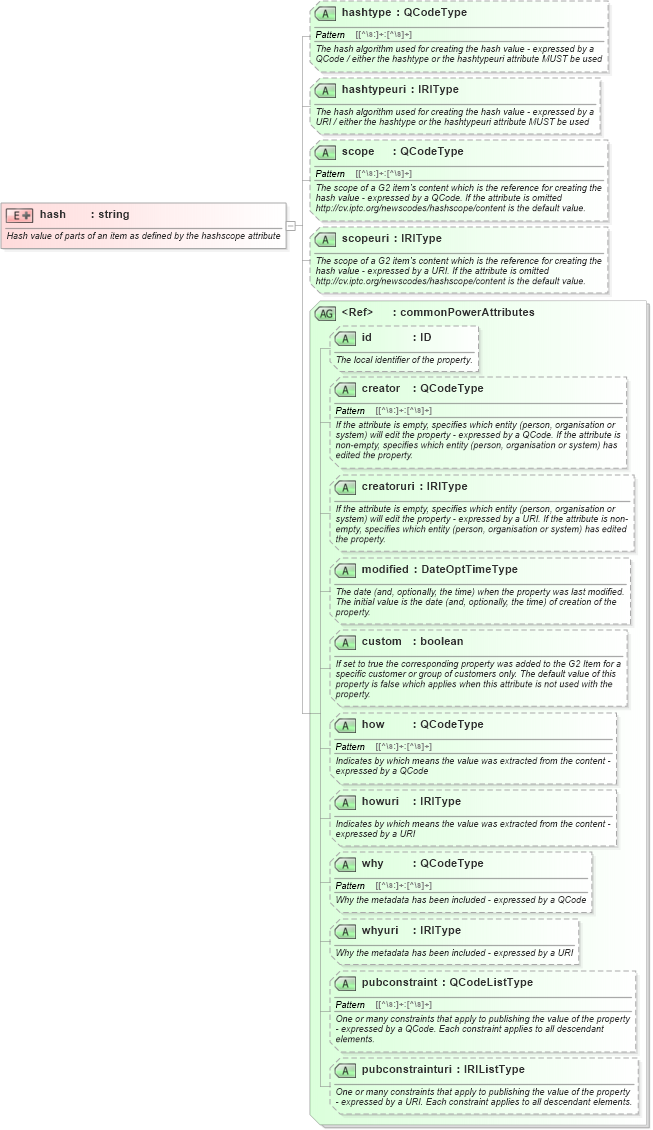

Collapse XSD Schema Diagram:
Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into scopeuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into scope in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into hashtypeuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into hashtype in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of hash in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="hash">
    <xs:annotation>
        <xs:documentation>Hash value of parts of an item as defined by the hashscope attribute</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:simpleContent>
            <xs:extension base="xs:string">
                <xs:attribute name="hashtype" type="QCodeType">
                    <xs:annotation>
                        <xs:documentation>The hash algorithm used for creating the hash value - expressed by a QCode / either the hashtype or the hashtypeuri attribute MUST be used</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="hashtypeuri" type="IRIType">
                    <xs:annotation>
                        <xs:documentation>The hash algorithm used for creating the hash value - expressed by a URI / either the hashtype or the hashtypeuri attribute MUST be used</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="scope" type="QCodeType">
                    <xs:annotation>
                        <xs:documentation>The scope of a G2 item's content which is the reference for creating the hash value - expressed by a QCode. If the attribute is omitted http://cv.iptc.org/newscodes/hashscope/content is the default value.</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="scopeuri" type="IRIType">
                    <xs:annotation>
                        <xs:documentation>The scope of a G2 item's content which is the reference for creating the hash value - expressed by a URI. If the attribute is omitted http://cv.iptc.org/newscodes/hashscope/content is the default value.</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attributeGroup ref="commonPowerAttributes" />
            </xs:extension>
        </xs:simpleContent>
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
hashtype nsA:hashtype (Optional)
hashtypeuri nsA:hashtypeuri (Optional)
scope nsA:scope (Optional)
scopeuri nsA:scopeuri (Optional)
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
