Definition Type: Element
Name: inline
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
An inline markup tag to be used with any concept

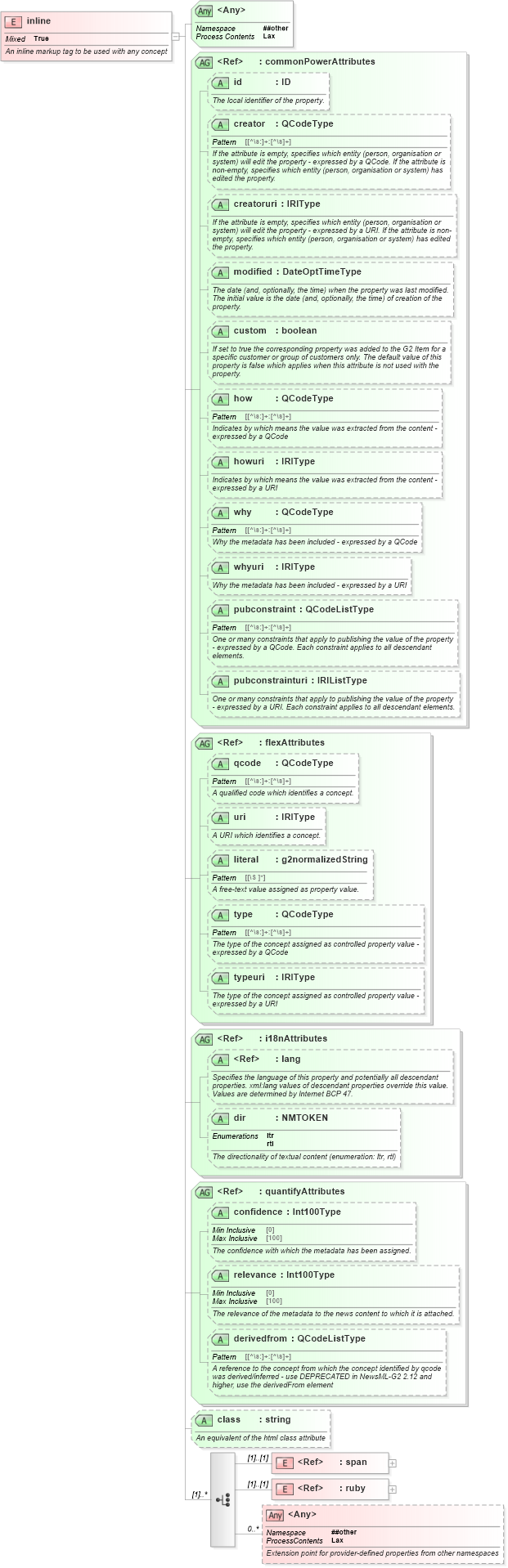

Collapse XSD Schema Diagram:
Drilldown into ruby in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into span in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into class in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into derivedfrom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into relevance in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into confidence in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into quantifyAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into dir in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into  in schema Drilldown into i18nAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into typeuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into type in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into literal in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into uri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into qcode in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into flexAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of inline in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="inline">
    <xs:annotation>
        <xs:documentation>An inline markup tag to be used with any concept</xs:documentation>
    </xs:annotation>
    <xs:complexType mixed="true">
        <xs:choice maxOccurs="unbounded">
            <xs:element ref="span" />
            <xs:element ref="ruby" />
            <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
                </xs:annotation>
            </xs:any>
        </xs:choice>
        <xs:attributeGroup ref="commonPowerAttributes" />
        <xs:attributeGroup ref="flexAttributes" />
        <xs:attributeGroup ref="i18nAttributes" />
        <xs:attributeGroup ref="quantifyAttributes" />
        <xs:attribute name="class" type="xs:string" use="optional">
            <xs:annotation>
                <xs:documentation>An equivalent of the html class attribute</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
span nsA:span (1) (1)
ruby nsA:ruby (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
qcode nsA:qcode Optional
uri nsA:uri Optional
literal nsA:literal Optional
type nsA:type Optional
typeuri nsA:typeuri Optional
lang Unresolved link to lang Optional
dir nsA:dir Optional
confidence nsA:confidence Optional
relevance nsA:relevance Optional
derivedfrom nsA:derivedfrom Optional
class nsA:class Optional
<anyAttribute> Allowed namespace: '##other'
