Documentation for SportsML
Definition Type: ComplexType
Name: Link1Type
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
The PCL-type of a link from the current Item to a target Item or Web resource

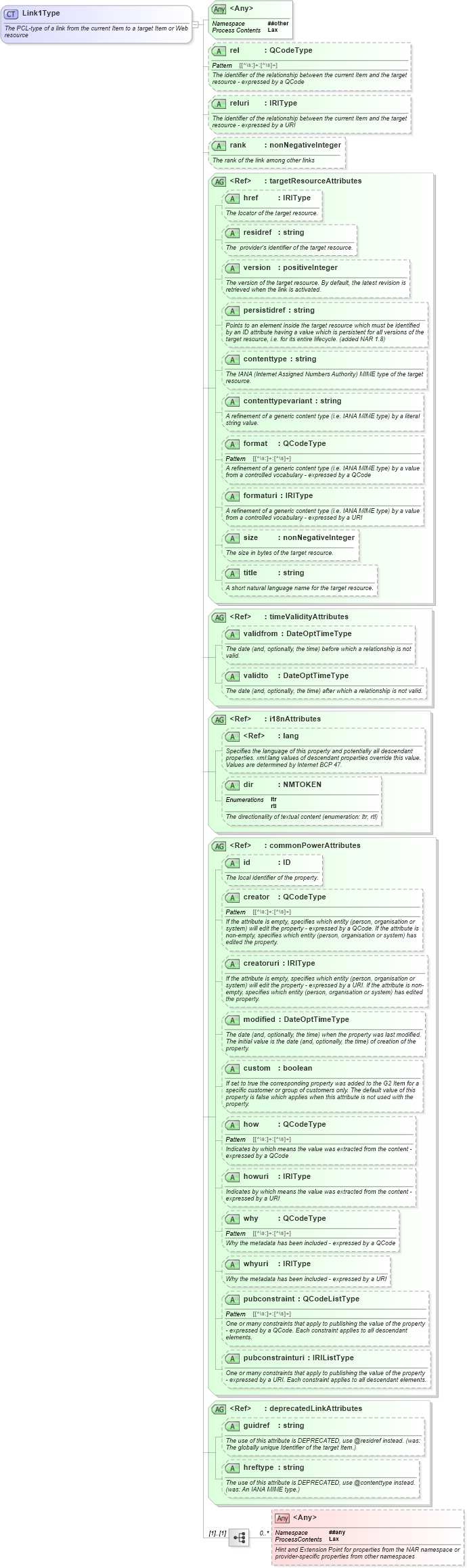

Collapse XSD Schema Diagram:
Drilldown into hreftype in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into guidref in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into deprecatedLinkAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into dir in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into in schema Drilldown into i18nAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into validto in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into validfrom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into timeValidityAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into title in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into size in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into formaturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into format in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into contenttypevariant in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into contenttype in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into persistidref in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into version in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into residref in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into href in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into targetResourceAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into rank in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into reluri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into rel in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of Link1Type in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="Link1Type">
    <xs:annotation>
        <xs:documentation>The PCL-type of a link from the current Item to a target Item or Web resource</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:any namespace="##any" processContents="lax" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation>Hint and Extension Point for properties from the NAR namespace or provider-specific properties from other namespaces</xs:documentation>
            </xs:annotation>
        </xs:any>
    </xs:sequence>
    <xs:attribute name="rel" type="QCodeType" use="optional">
        <xs:annotation>
            <xs:documentation>The identifier of the relationship between the current Item and the target resource - expressed by a QCode</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="reluri" type="IRIType" use="optional">
        <xs:annotation>
            <xs:documentation>The identifier of the relationship between the current Item and the target resource - expressed by a URI</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="rank" type="xs:nonNegativeInteger" use="optional">
        <xs:annotation>
            <xs:documentation>The rank of the link among other links</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attributeGroup ref="targetResourceAttributes" />
    <xs:attributeGroup ref="timeValidityAttributes" />
    <xs:attributeGroup ref="i18nAttributes" />
    <xs:attributeGroup ref="commonPowerAttributes" />
    <xs:attributeGroup ref="deprecatedLinkAttributes" />
    <xs:anyAttribute namespace="##other" processContents="lax" />
    <!-- NAR v1.2 : guidref deprecated.-->
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> Allowed namespace: '##any' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
rel nsA:rel Optional
reluri nsA:reluri Optional
rank nsA:rank Optional
href nsA:href Optional
residref nsA:residref Optional
version nsA:version Optional
persistidref nsA:persistidref Optional
contenttype nsA:contenttype Optional
contenttypevariant nsA:contenttypevariant Optional
format nsA:format Optional
formaturi nsA:formaturi Optional
size nsA:size Optional
title nsA:title Optional
validfrom nsA:validfrom Optional
validto nsA:validto Optional
lang Unresolved link to lang Optional
dir nsA:dir Optional
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
guidref nsA:guidref Optional
hreftype nsA:hreftype Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
nsA:deliverableOf, nsA:deliveredItemRef, nsA:itemRef, nsA:link, nsA:remoteInfo
