Definition Type: Element
Name: organisationDetails
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
A group of properties specific to an organisation

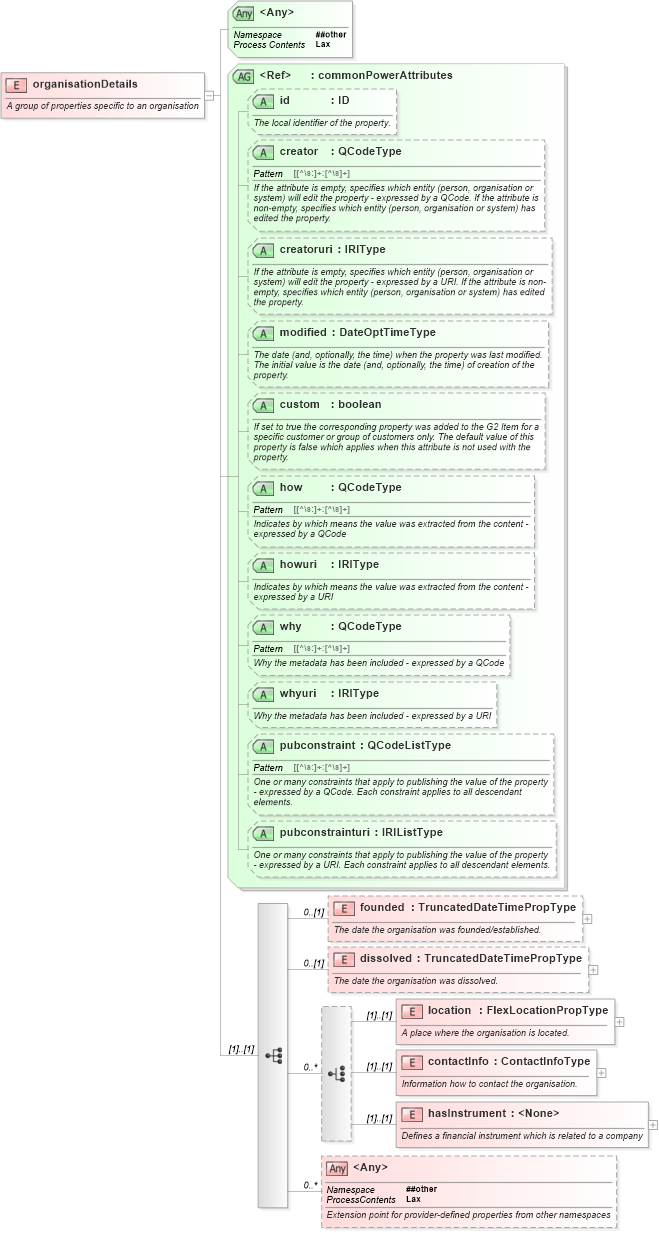

Collapse XSD Schema Diagram:
Drilldown into hasInstrument in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into contactInfo in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into location in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into dissolved in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into founded in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of organisationDetails in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="organisationDetails">
    <xs:annotation>
        <xs:documentation>A group of properties specific to an organisation</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="founded" type="TruncatedDateTimePropType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The date the organisation was founded/established.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="dissolved" type="TruncatedDateTimePropType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The date the organisation was dissolved.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:choice minOccurs="0" maxOccurs="unbounded">
                <xs:element name="location" type="FlexLocationPropType">
                    <xs:annotation>
                        <xs:documentation>A place where the organisation is located.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="contactInfo" type="ContactInfoType">
                    <xs:annotation>
                        <xs:documentation>Information how to contact the organisation.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="hasInstrument">
                    <xs:annotation>
                        <xs:documentation>Defines a financial instrument which is related to a company</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                        <xs:attributeGroup ref="commonPowerAttributes" />
                        <xs:attribute name="symbol" type="xs:string" use="required">
                            <xs:annotation>
                                <xs:documentation>A symbol for the financial instrument</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:attribute name="symbolsrc" type="QCodeType">
                            <xs:annotation>
                                <xs:documentation>The  source of the financial instrument symbol - expressed by a QCode</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:attribute name="symbolsrcuri" type="IRIType">
                            <xs:annotation>
                                <xs:documentation>The  source of the financial instrument symbol - expressed by a URI</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:attribute name="market" type="QCodeType">
                            <xs:annotation>
                                <xs:documentation>A venue in which this financial instrument is traded - expressed by a QCode</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:attribute name="marketuri" type="IRIType">
                            <xs:annotation>
                                <xs:documentation>A venue in which this financial instrument is traded - expressed by a URI</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:attribute name="marketlabel" type="xs:string">
                            <xs:annotation>
                                <xs:documentation>The label used for the market</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:attribute name="marketlabelsrc" type="QCodeType">
                            <xs:annotation>
                                <xs:documentation>The source of the market label - expressed by a QCode</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:attribute name="marketlabelsrcuri" type="IRIType">
                            <xs:annotation>
                                <xs:documentation>The source of the market label - expressed by a URI</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:attribute name="type" type="QCodeListType">
                            <xs:annotation>
                                <xs:documentation>The type(s) of the financial instrument - expressed by a QCode</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:attribute name="typeuri" type="IRIListType">
                            <xs:annotation>
                                <xs:documentation>The type(s) of the financial instrument - expressed by a URI</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:attribute name="rank" type="xs:nonNegativeInteger">
                            <xs:annotation>
                                <xs:documentation>Indicates the relative importance among financial instruments of the same type.</xs:documentation>
                            </xs:annotation>
                        </xs:attribute>
                        <xs:anyAttribute namespace="##other" />
                    </xs:complexType>
                </xs:element>
            </xs:choice>
            <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
                </xs:annotation>
            </xs:any>
        </xs:sequence>
        <xs:attributeGroup ref="commonPowerAttributes" />
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
founded nsA:founded 0 (1)
dissolved nsA:dissolved 0 (1)
location nsA:location (1) (1)
contactInfo nsA:contactInfo (1) (1)
hasInstrument nsA:hasInstrument (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
<anyAttribute> Allowed namespace: '##other'
