Definition Type: Element
Name: planning
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Details about the planned news coverage by a specific kind of G2 item.

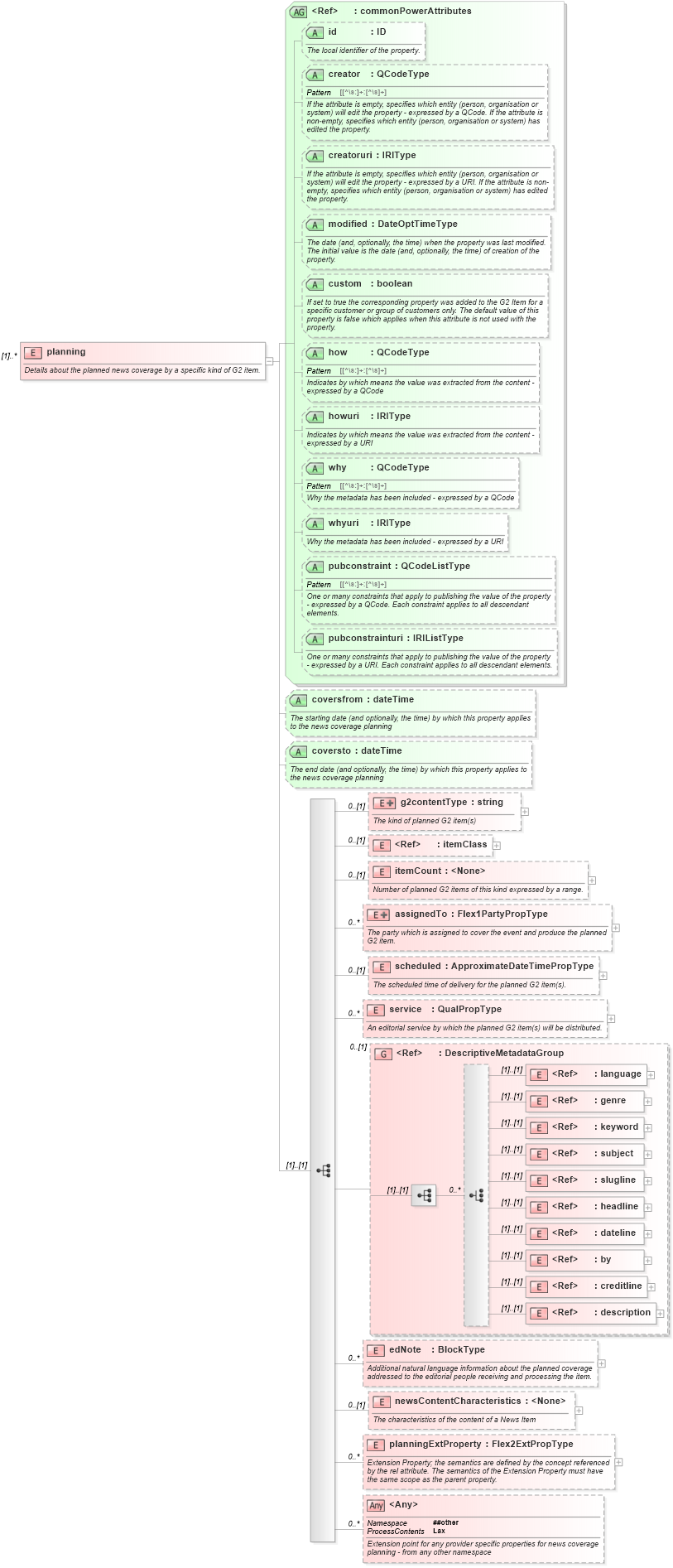

Collapse XSD Schema Diagram:
Drilldown into planningExtProperty in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into newsContentCharacteristics in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into edNote in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into description in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creditline in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into by in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into dateline in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into headline in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into slugline in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into subject in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into keyword in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into genre in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into language in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into DescriptiveMetadataGroup in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into service in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into scheduled in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into assignedTo in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into itemCount in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into itemClass in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into g2contentType in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into coversto in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into coversfrom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of planning in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="planning" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>Details about the planned news coverage by a specific kind of G2 item.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="g2contentType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The kind of planned G2 item(s)</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:simpleContent>
                        <xs:extension base="xs:string">
                            <xs:attributeGroup ref="commonPowerAttributes" />
                        </xs:extension>
                    </xs:simpleContent>
                </xs:complexType>
            </xs:element>
            <xs:element ref="itemClass" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The nature of the G2 item, set in accordance with the structure of its content.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="itemCount" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>Number of planned G2 items of this kind expressed by a range.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:attributeGroup ref="commonPowerAttributes" />
                    <xs:attribute name="rangefrom" type="xs:nonNegativeInteger" use="required" />
                    <xs:attribute name="rangeto" type="xs:positiveInteger" use="required" />
                </xs:complexType>
            </xs:element>
            <xs:element name="assignedTo" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>The party which is assigned to cover the event and produce the planned G2 item.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:complexContent>
                        <xs:extension base="Flex1PartyPropType">
                            <xs:attribute name="coversfrom" type="xs:dateTime">
                                <xs:annotation>
                                    <xs:documentation>The starting date (and optionally, the time) by which this property applies to the news coverage planning</xs:documentation>
                                </xs:annotation>
                            </xs:attribute>
                            <xs:attribute name="coversto" type="xs:dateTime">
                                <xs:annotation>
                                    <xs:documentation>The end date (and optionally, the time) by which this property applies to the news coverage planning</xs:documentation>
                                </xs:annotation>
                            </xs:attribute>
                        </xs:extension>
                    </xs:complexContent>
                </xs:complexType>
            </xs:element>
            <xs:element name="scheduled" type="ApproximateDateTimePropType" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The scheduled time of delivery for the planned G2 item(s).</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="service" type="QualPropType" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>An editorial service by which the planned G2 item(s) will be distributed.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:group ref="DescriptiveMetadataGroup" minOccurs="0" />
            <xs:element name="edNote" type="BlockType" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Additional natural language information about the planned coverage addressed to the editorial people receiving and processing the item.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:element name="newsContentCharacteristics" minOccurs="0">
                <xs:annotation>
                    <xs:documentation>The characteristics of the content of a News Item </xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:attributeGroup ref="commonPowerAttributes" />
                    <xs:attributeGroup ref="newsContentCharacteristics" />
                </xs:complexType>
            </xs:element>
            <xs:element name="planningExtProperty" type="Flex2ExtPropType" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Extension Property; the semantics are defined by the concept referenced by the rel attribute. The semantics of the Extension Property must have the same scope as the parent property.</xs:documentation>
                </xs:annotation>
            </xs:element>
            <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Extension point for any provider specific properties for news coverage planning - from any other namespace</xs:documentation>
                </xs:annotation>
            </xs:any>
        </xs:sequence>
        <xs:attributeGroup ref="commonPowerAttributes" />
        <xs:attribute name="coversfrom" type="xs:dateTime">
            <xs:annotation>
                <xs:documentation>The starting date (and optionally, the time) by which this property applies to the news coverage planning</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="coversto" type="xs:dateTime">
            <xs:annotation>
                <xs:documentation>The end date (and optionally, the time) by which this property applies to the news coverage planning</xs:documentation>
            </xs:annotation>
        </xs:attribute>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
g2contentType nsA:g2contentType 0 (1)
itemClass nsA:itemClass 0 (1)
itemCount nsA:itemCount 0 (1)
assignedTo nsA:assignedTo 0 unbounded
scheduled nsA:scheduled 0 (1)
service nsA:service 0 unbounded
language nsA:language (1) (1)
genre nsA:genre (1) (1)
keyword nsA:keyword (1) (1)
subject nsA:subject (1) (1)
slugline nsA:slugline (1) (1)
headline nsA:headline (1) (1)
dateline nsA:dateline (1) (1)
by nsA:by (1) (1)
creditline nsA:creditline (1) (1)
description nsA:description (1) (1)
edNote nsA:edNote 0 unbounded
newsContentCharacteristics nsA:newsContentCharacteristics 0 (1)
planningExtProperty nsA:planningExtProperty 0 unbounded
<xs:any> Allowed namespace: '##other' 0 unbounded
<xs:group> nsA:DescriptiveMetadataGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
coversfrom nsA:coversfrom (Optional)
coversto nsA:coversto (Optional)
