Docs for schema item priority in SportsML

Documentation for SportsML

Definition Type:	Element
Name:	priority
Namespace:	http://iptc.org/std/nar/2006-10-01/
Type:	nsA:Int1to9Type
Containing Schema:	NewsML-G2_2.22-spec-All-Power.xsd
MinOccurs	0
MaxOccurs	(1)
Abstract
Documentation:	The priority of this message in the overall transmission process. A value of 1 corresponds to the highest priority, a value of 9 to the lowest.

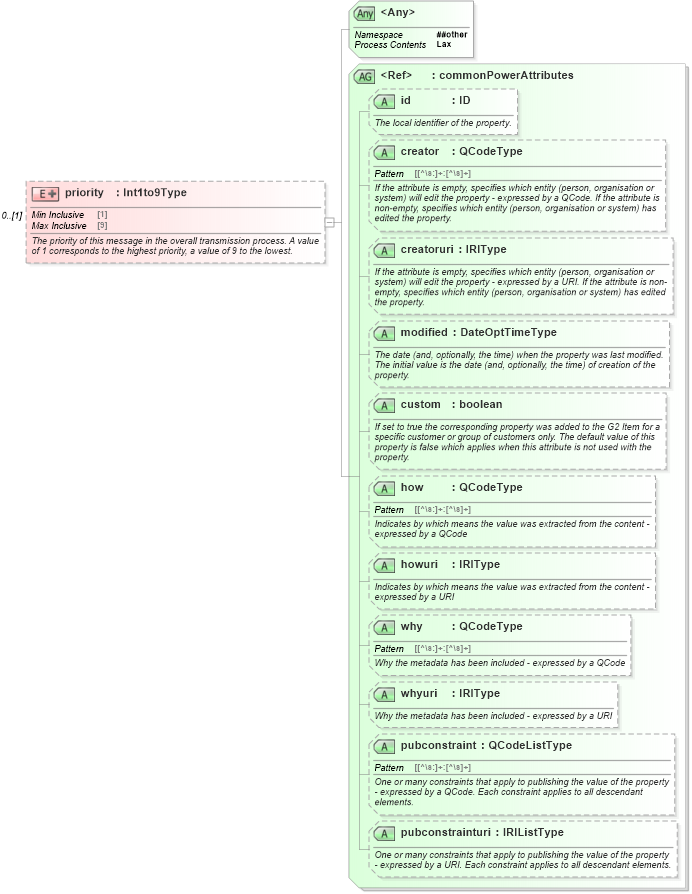

XSD Schema Diagram:

XSD Diagram of priority in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)

XSD Schema Code:

<xs:element name="priority" minOccurs="0">
    <xs:annotation>
        <xs:documentation>The priority of this message in the overall transmission process. A value of 1 corresponds to the highest priority, a value of 9 to the lowest.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:simpleContent>
            <xs:extension base="Int1to9Type">
                <xs:attributeGroup ref="commonPowerAttributes" />
                <xs:anyAttribute namespace="##other" processContents="lax" />
            </xs:extension>
        </xs:simpleContent>
    </xs:complexType>
</xs:element>

Child Attributes:

Name	Type	Default Value	Use
id	nsA:id		Optional
creator	nsA:creator		Optional
creatoruri	nsA:creatoruri		Optional
modified	nsA:modified		Optional
custom	nsA:custom		Optional
how	nsA:how		Optional
howuri	nsA:howuri		Optional
why	nsA:why		Optional
whyuri	nsA:whyuri		Optional
pubconstraint	nsA:pubconstraint		Optional
pubconstrainturi	nsA:pubconstrainturi		Optional
<anyAttribute>	Allowed namespace: '##other'

Derivation Tree:
	nsA:Int1to9Type *priority*

Documentation for SportsML

Generated using Liquid Studio - Developer Bundle 21.0.0.0
