Documentation for SportsML
Definition Type: Element
Name: regionDelim
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
A delimiter for a rectangular region in a piece of visual content

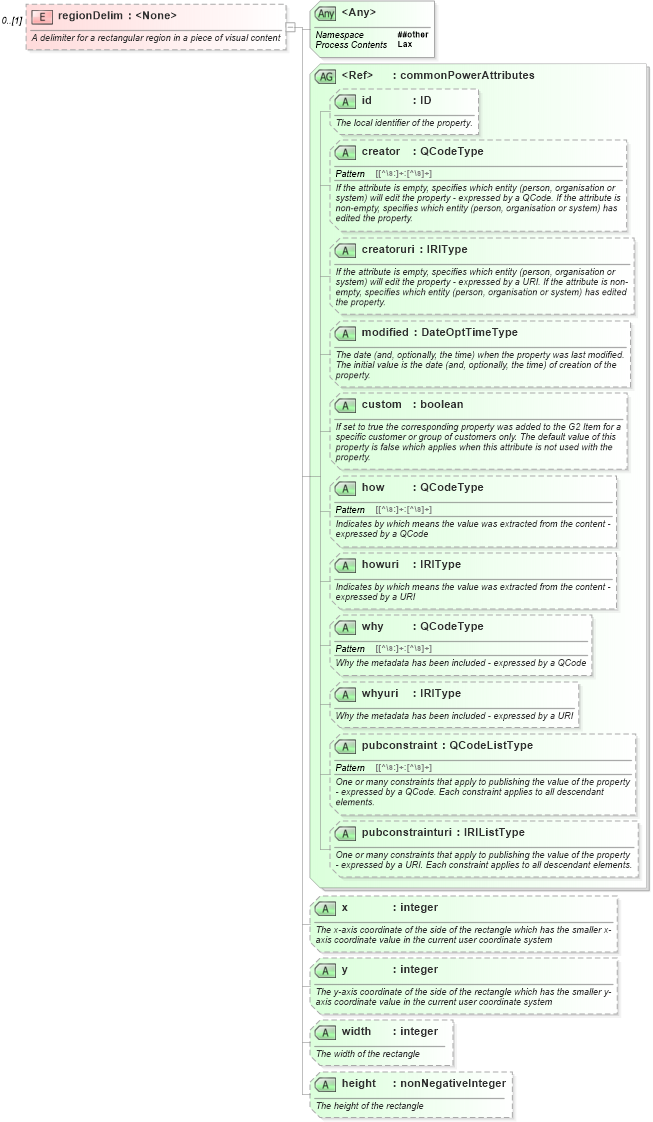

Collapse XSD Schema Diagram:
Drilldown into height in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into width in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into y in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into x in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of regionDelim in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="regionDelim" minOccurs="0">
    <xs:annotation>
        <xs:documentation>A delimiter for a rectangular region in a piece of visual content</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:attributeGroup ref="commonPowerAttributes" />
        <xs:attribute name="x" type="xs:integer">
            <xs:annotation>
                <xs:documentation>The x-axis coordinate of the side of the rectangle which has the smaller x-axis coordinate value in the current user coordinate system</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="y" type="xs:integer">
            <xs:annotation>
                <xs:documentation>The y-axis coordinate of the side of the rectangle which has the smaller y-axis coordinate value in the current user coordinate system</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="width" type="xs:integer">
            <xs:annotation>
                <xs:documentation>The width of the rectangle</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="height" type="xs:nonNegativeInteger">
            <xs:annotation>
                <xs:documentation>The height of the rectangle</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
x nsA:x (Optional)
y nsA:y (Optional)
width nsA:width (Optional)
height nsA:height (Optional)
<anyAttribute> Allowed namespace: '##other'
