Definition Type: Element
Name: schemeMeta
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
Metadata about a scheme conveyed by a Knowledge Item

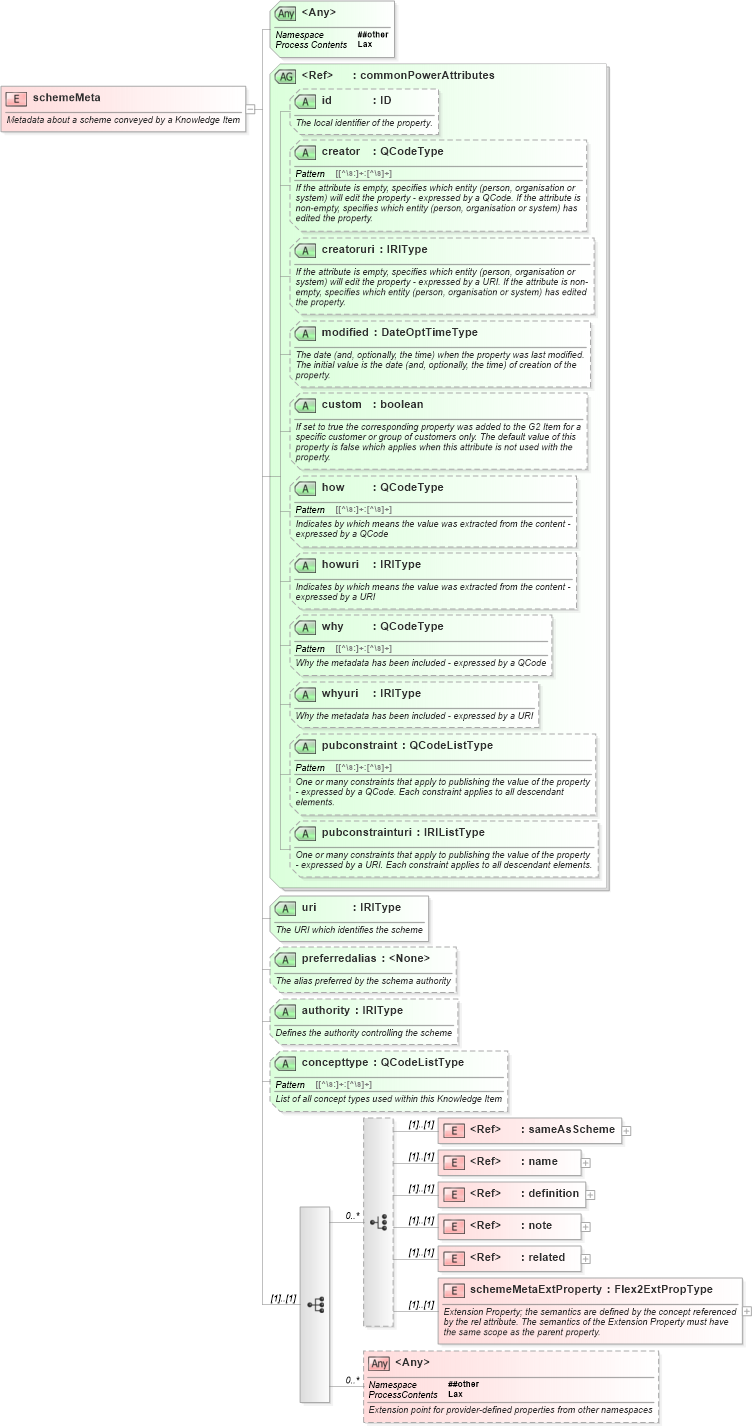

Collapse XSD Schema Diagram:
Drilldown into schemeMetaExtProperty in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into related in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into note in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into definition in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into name in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into sameAsScheme in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into concepttype in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into authority in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into preferredalias in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into uri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of schemeMeta in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="schemeMeta">
    <xs:annotation>
        <xs:documentation>Metadata about a scheme conveyed by a Knowledge Item</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:choice minOccurs="0" maxOccurs="unbounded">
                <xs:element ref="sameAsScheme" />
                <xs:element ref="name" />
                <xs:element ref="definition" />
                <xs:element ref="note" />
                <xs:element ref="related" />
                <xs:element name="schemeMetaExtProperty" type="Flex2ExtPropType">
                    <xs:annotation>
                        <xs:documentation>Extension Property; the semantics are defined by the concept referenced by the rel attribute. The semantics of the Extension Property must have the same scope as the parent property.</xs:documentation>
                    </xs:annotation>
                </xs:element>
            </xs:choice>
            <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>Extension point for provider-defined properties from other namespaces</xs:documentation>
                </xs:annotation>
            </xs:any>
        </xs:sequence>
        <xs:attributeGroup ref="commonPowerAttributes" />
        <xs:attribute name="uri" type="IRIType" use="required">
            <xs:annotation>
                <xs:documentation>The URI which identifies the scheme</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="preferredalias">
            <xs:annotation>
                <xs:documentation>The alias preferred by the schema authority</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="authority" type="IRIType">
            <xs:annotation>
                <xs:documentation>Defines the authority controlling the scheme </xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="concepttype" type="QCodeListType">
            <xs:annotation>
                <xs:documentation>List of all concept types used within this Knowledge Item</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sameAsScheme nsA:sameAsScheme (1) (1)
name nsA:name (1) (1)
definition nsA:definition (1) (1)
note nsA:note (1) (1)
related nsA:related (1) (1)
schemeMetaExtProperty nsA:schemeMetaExtProperty (1) (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
uri nsA:uri Required
preferredalias nsA:preferredalias (Optional)
authority nsA:authority (Optional)
concepttype nsA:concepttype (Optional)
<anyAttribute> Allowed namespace: '##other'
