Documentation for SportsML
Definition Type: Element
Name: signal
Namespace: http://iptc.org/std/nar/2006-10-01/
Type: nsA:QualPropType
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
Abstract
Documentation:
An instruction to the processor that the content requires special handling.

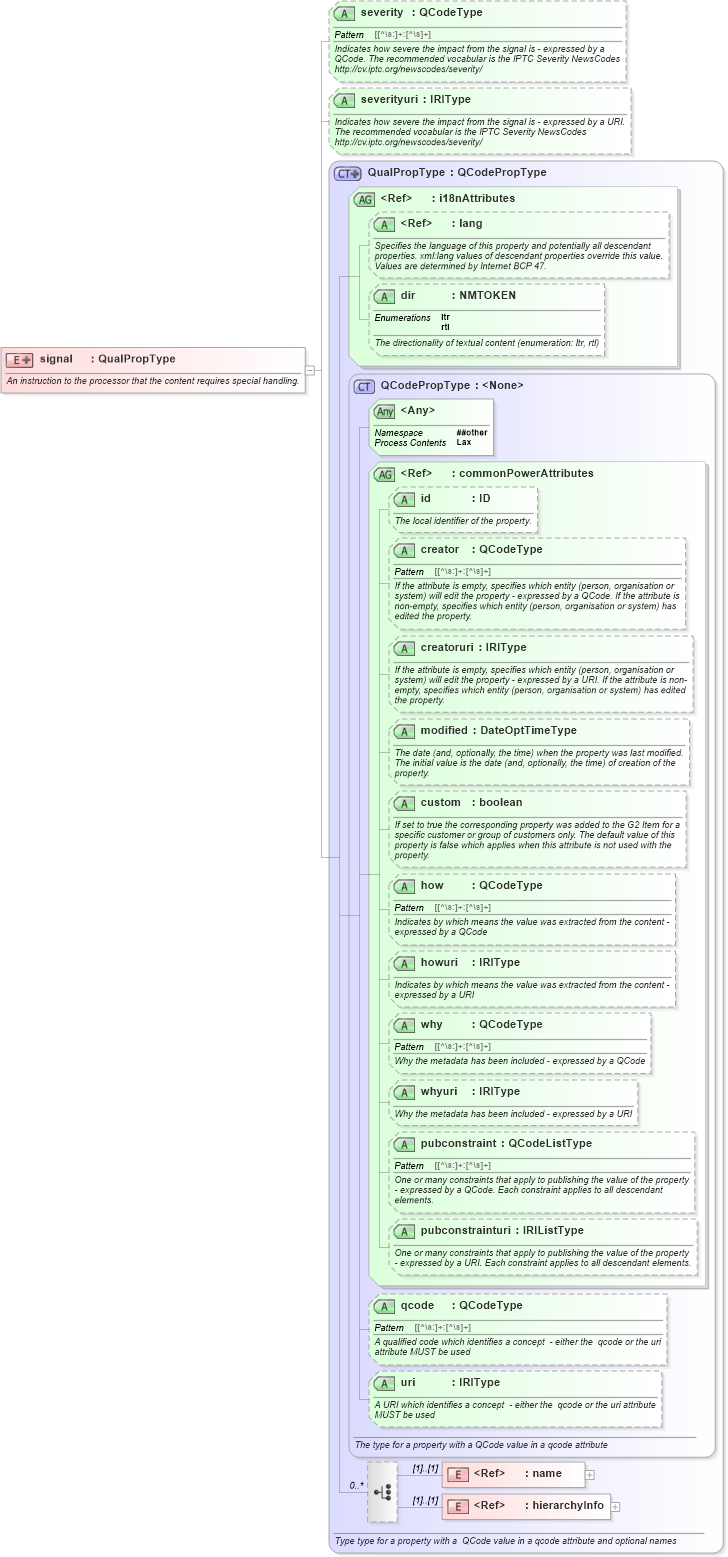

Collapse XSD Schema Diagram:
Drilldown into hierarchyInfo in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into name in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into uri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into qcode in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into QCodePropType in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into dir in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into in schema Drilldown into i18nAttributes in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into QualPropType in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into severityuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into severity in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of signal in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="signal">
    <xs:annotation>
        <xs:documentation>An instruction to the processor that the content requires special handling.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="QualPropType">
                <xs:attribute name="severity" type="QCodeType" use="optional">
                    <xs:annotation>
                        <xs:documentation>Indicates how severe the impact from the signal is - expressed by a QCode. The recommended vocabular is the IPTC Severity NewsCodes  http://cv.iptc.org/newscodes/severity/</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="severityuri" type="IRIType" use="optional">
                    <xs:annotation>
                        <xs:documentation>Indicates how severe the impact from the signal is - expressed by a URI. The recommended vocabular is the IPTC Severity NewsCodes  http://cv.iptc.org/newscodes/severity/</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name nsA:name (1) (1)
hierarchyInfo nsA:hierarchyInfo (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
qcode nsA:qcode (Optional)
uri nsA:uri Optional
lang Unresolved link to lang Optional
dir nsA:dir Optional
severity nsA:severity Optional
severityuri nsA:severityuri Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
