Documentation for SportsML
Definition Type: ComplexType
Name: siteComplexType
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: sportsml.xsd
Abstract
Documentation:
An element housing data having to do with a venue, stadium, arena, field, etc.

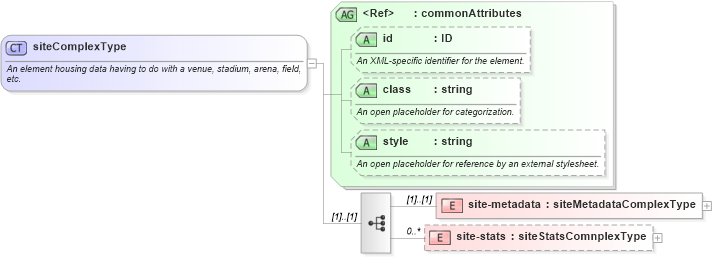

Collapse XSD Schema Diagram:
Drilldown into site-stats in schema sportsml_xsd Drilldown into site-metadata in schema sportsml_xsd Drilldown into style in schema sportsml_xsd Drilldown into class in schema sportsml_xsd Drilldown into id in schema sportsml_xsd Drilldown into commonAttributes in schema sportsml_xsdXSD Diagram of siteComplexType in schema sportsml_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="siteComplexType">
    <xs:annotation>
        <xs:documentation>An element housing data having to do with a venue, stadium, arena, field, etc.</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="site-metadata" type="siteMetadataComplexType" />
        <xs:element name="site-stats" type="siteStatsComnplexType" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attributeGroup ref="commonAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
site-metadata nsA:site-metadata (1) (1)
site-stats nsA:site-stats 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
class nsA:class Optional
style nsA:style Optional
Collapse Derivation Tree:
Collapse References:
nsA:site, nsA:site
