Documentation for SportsML
Definition Type: ComplexType
Name: sportsContentCodeComplexType
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: sportsml.xsd
Abstract
Documentation:
An individual code that describes an entity one may want to filter for. Describes what sports, what teams, etc., are covered.

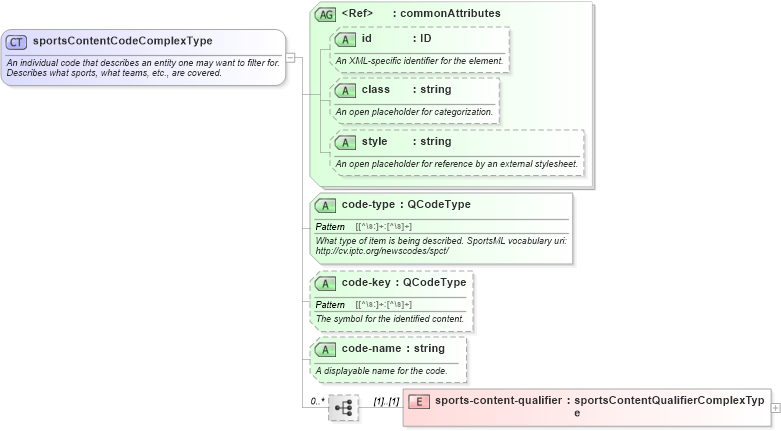

Collapse XSD Schema Diagram:
Drilldown into sports-content-qualifier in schema sportsml_xsd Drilldown into code-name in schema sportsml_xsd Drilldown into code-key in schema sportsml_xsd Drilldown into code-type in schema sportsml_xsd Drilldown into style in schema sportsml_xsd Drilldown into class in schema sportsml_xsd Drilldown into id in schema sportsml_xsd Drilldown into commonAttributes in schema sportsml_xsdXSD Diagram of sportsContentCodeComplexType in schema sportsml_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="sportsContentCodeComplexType">
    <xs:annotation>
        <xs:documentation>An individual code that describes an entity one may want to filter for. Describes what sports, what teams, etc., are covered.</xs:documentation>
    </xs:annotation>
    <xs:sequence minOccurs="0" maxOccurs="unbounded">
        <xs:element name="sports-content-qualifier" type="sportsContentQualifierComplexType" />
    </xs:sequence>
    <xs:attributeGroup ref="commonAttributes" />
    <xs:attribute name="code-type" type="QCodeType" use="required">
        <xs:annotation>
            <xs:documentation>What type of item is being described. SportsML vocabulary uri: http://cv.iptc.org/newscodes/spct/</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="code-key" type="QCodeType" use="optional">
        <xs:annotation>
            <xs:documentation>The symbol for the identified content.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="code-name" type="xs:string" use="optional">
        <xs:annotation>
            <xs:documentation>A displayable name for the code.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
sports-content-qualifier nsA:sports-content-qualifier (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
class nsA:class Optional
style nsA:style Optional
code-type nsA:code-type Required
code-key nsA:code-key Optional
code-name nsA:code-name Optional
Collapse Derivation Tree:
Collapse References:
nsA:sports-content-code
