Documentation for SportsML
Definition Type: ComplexType
Name: teamComplexType
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: sportsml.xsd
Abstract
Documentation:
A team participating in a sporting event. | Holds metadata and statistical data for team.

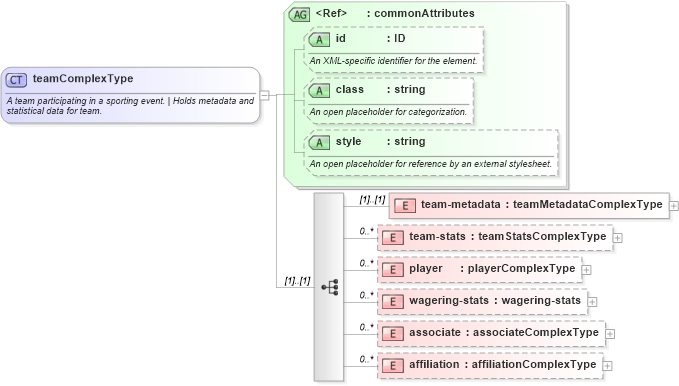

Collapse XSD Schema Diagram:
Drilldown into affiliation in schema sportsml_xsd Drilldown into associate in schema sportsml_xsd Drilldown into wagering-stats in schema sportsml_xsd Drilldown into player in schema sportsml_xsd Drilldown into team-stats in schema sportsml_xsd Drilldown into team-metadata in schema sportsml_xsd Drilldown into style in schema sportsml_xsd Drilldown into class in schema sportsml_xsd Drilldown into id in schema sportsml_xsd Drilldown into commonAttributes in schema sportsml_xsdXSD Diagram of teamComplexType in schema sportsml_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="teamComplexType">
    <xs:annotation>
        <xs:documentation>A team participating in a sporting event. | Holds metadata and
                statistical data for team.</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="team-metadata" type="teamMetadataComplexType" />
        <xs:element name="team-stats" type="teamStatsComplexType" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="player" type="playerComplexType" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="wagering-stats" type="wagering-stats" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="associate" type="associateComplexType" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="affiliation" type="affiliationComplexType" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
    <xs:attributeGroup ref="commonAttributes" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
team-metadata nsA:team-metadata (1) (1)
team-stats nsA:team-stats 0 unbounded
player nsA:player 0 unbounded
wagering-stats nsA:wagering-stats 0 unbounded
associate nsA:associate 0 unbounded
affiliation nsA:affiliation 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
class nsA:class Optional
style nsA:style Optional
Collapse Derivation Tree:
Collapse References:
nsA:team, nsA:team, nsA:team, nsA:team
