Definition Type: Element
Name: timeDelim
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: NewsML-G2_2.22-spec-All-Power.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
A delimiter for a piece of streaming media content, expressed in various time formats

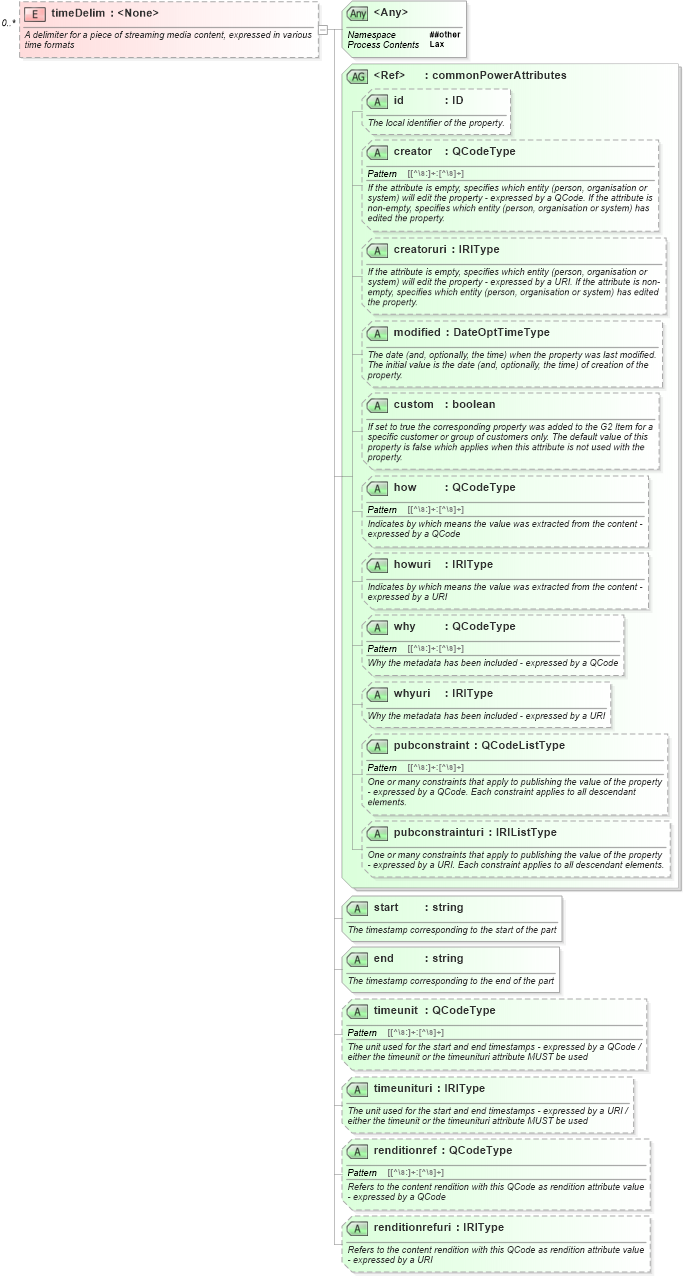

Collapse XSD Schema Diagram:
Drilldown into renditionrefuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into renditionref in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into timeunituri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into timeunit in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into end in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into start in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstrainturi in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into pubconstraint in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into whyuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into why in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into howuri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into how in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into custom in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into modified in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creatoruri in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into creator in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into id in schema newsml-g2_2_22-spec-all-power_xsd Drilldown into commonPowerAttributes in schema newsml-g2_2_22-spec-all-power_xsdXSD Diagram of timeDelim in schema newsml-g2_2_22-spec-all-power_xsd (SportsML)
Collapse XSD Schema Code:
<xs:element name="timeDelim" minOccurs="0" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation>A delimiter for a piece of streaming media content, expressed in various time formats</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:attributeGroup ref="commonPowerAttributes" />
        <xs:attribute name="start" type="xs:string" use="required">
            <xs:annotation>
                <xs:documentation>The timestamp corresponding to the start of the part</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="end" type="xs:string" use="required">
            <xs:annotation>
                <xs:documentation>The timestamp corresponding to the end of the part</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="timeunit" type="QCodeType">
            <xs:annotation>
                <xs:documentation>The unit used for the start and end timestamps - expressed by a QCode / either the timeunit or the timeunituri attribute MUST be used</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="timeunituri" type="IRIType">
            <xs:annotation>
                <xs:documentation>The unit used for the start and end timestamps - expressed by a URI / either the timeunit or the timeunituri attribute MUST be used</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="renditionref" type="QCodeType">
            <xs:annotation>
                <xs:documentation>Refers to the content rendition with this QCode as rendition attribute value - expressed by a QCode</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="renditionrefuri" type="IRIType">
            <xs:annotation>
                <xs:documentation>Refers to the content rendition with this QCode as rendition attribute value - expressed by a URI</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:anyAttribute namespace="##other" processContents="lax" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
creator nsA:creator Optional
creatoruri nsA:creatoruri Optional
modified nsA:modified Optional
custom nsA:custom Optional
how nsA:how Optional
howuri nsA:howuri Optional
why nsA:why Optional
whyuri nsA:whyuri Optional
pubconstraint nsA:pubconstraint Optional
pubconstrainturi nsA:pubconstrainturi Optional
start nsA:start Required
end nsA:end Required
timeunit nsA:timeunit (Optional)
timeunituri nsA:timeunituri (Optional)
renditionref nsA:renditionref (Optional)
renditionrefuri nsA:renditionrefuri (Optional)
<anyAttribute> Allowed namespace: '##other'
