Documentation for SportsML
Definition Type: ComplexType
Name: tournamentPartComplexType
Namespace: http://iptc.org/std/nar/2006-10-01/
Containing Schema: sportsml.xsd
Abstract
Documentation:
A tournament part. Use it do group specific parts of a tournament, like a stage or a round.

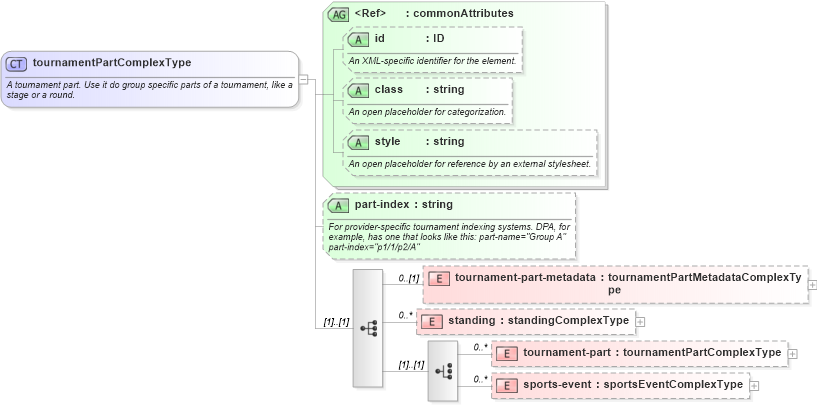

Collapse XSD Schema Diagram:
Drilldown into sports-event in schema sportsml_xsd Drilldown into tournament-part in schema sportsml_xsd Drilldown into standing in schema sportsml_xsd Drilldown into tournament-part-metadata in schema sportsml_xsd Drilldown into part-index in schema sportsml_xsd Drilldown into style in schema sportsml_xsd Drilldown into class in schema sportsml_xsd Drilldown into id in schema sportsml_xsd Drilldown into commonAttributes in schema sportsml_xsdXSD Diagram of tournamentPartComplexType in schema sportsml_xsd (SportsML)
Collapse XSD Schema Code:
<xs:complexType name="tournamentPartComplexType">
    <xs:annotation>
        <xs:documentation>A tournament part. Use it do group specific parts of a tournament, like a stage or a round. </xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="tournament-part-metadata" type="tournamentPartMetadataComplexType" minOccurs="0" />
        <xs:element name="standing" type="standingComplexType" minOccurs="0" maxOccurs="unbounded" />
        <xs:choice>
            <xs:element name="tournament-part" type="tournamentPartComplexType" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="sports-event" type="sportsEventComplexType" minOccurs="0" maxOccurs="unbounded" />
        </xs:choice>
    </xs:sequence>
    <xs:attributeGroup ref="commonAttributes" />
    <xs:attribute name="part-index" type="xs:string" use="optional">
        <xs:annotation>
            <xs:documentation> For provider-specific tournament indexing systems. DPA, for
                    example, has one that looks like this: part-name="Group A"
                    part-index="p1/1/p2/A" </xs:documentation>
        </xs:annotation>
    </xs:attribute>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
tournament-part-metadata nsA:tournament-part-metadata 0 (1)
standing nsA:standing 0 unbounded
tournament-part nsA:tournament-part 0 unbounded
sports-event nsA:sports-event 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id nsA:id Optional
class nsA:class Optional
style nsA:style Optional
part-index nsA:part-index Optional
Collapse Derivation Tree:
Collapse References:
nsA:tournament-part, nsA:tournament-part, nsA:tournament-part
