Documentation for W3C XForms
Definition Type: Element
Name: dispatch
Namespace: http://www.w3.org/2002/xforms
Containing Schema: XForms-Schema.xsd
Abstract

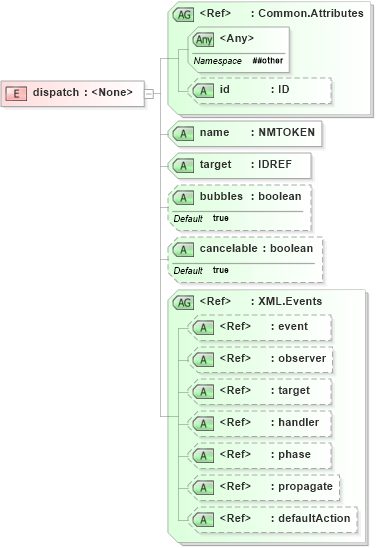

Collapse XSD Schema Diagram:
Drilldown into defaultAction in schema xml-events-attribs-1_xsd Drilldown into propagate in schema xml-events-attribs-1_xsd Drilldown into phase in schema xml-events-attribs-1_xsd Drilldown into handler in schema xml-events-attribs-1_xsd Drilldown into target in schema xml-events-attribs-1_xsd Drilldown into observer in schema xml-events-attribs-1_xsd Drilldown into event in schema xml-events-attribs-1_xsd Drilldown into XML.Events in schema xforms-schema_xsd Drilldown into cancelable in schema xforms-schema_xsd Drilldown into bubbles in schema xforms-schema_xsd Drilldown into target in schema xforms-schema_xsd Drilldown into name in schema xforms-schema_xsd Drilldown into id in schema xforms-schema_xsd Drilldown into Common.Attributes in schema xforms-schema_xsdXSD Diagram of dispatch in schema xforms-schema_xsd (W3C XForms)
Collapse XSD Schema Code:
<xsd:element name="dispatch">
    <xsd:complexType>
        <xsd:attributeGroup ref="xforms:Common.Attributes" />
        <xsd:attribute name="name" type="xsd:NMTOKEN" use="required" />
        <xsd:attribute name="target" type="xsd:IDREF" use="required" />
        <xsd:attribute name="bubbles" type="xsd:boolean" use="optional" default="true" />
        <xsd:attribute name="cancelable" type="xsd:boolean" use="optional" default="true" />
        <xsd:attributeGroup ref="xforms:XML.Events" />
    </xsd:complexType>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
id xforms:id Optional
name xforms:name Required
target xforms:target Required
bubbles xforms:bubbles true Optional
cancelable xforms:cancelable true Optional
event ev:event (Optional)
observer ev:observer (Optional)
target ev:target (Optional)
handler ev:handler (Optional)
phase ev:phase (Optional)
propagate ev:propagate (Optional)
defaultAction ev:defaultAction (Optional)
<anyAttribute> Allowed namespace: '##other'
