Documentation for W3C XForms
Definition Type: Element
Name: hint
Namespace: http://www.w3.org/2002/xforms
Containing Schema: XForms-Schema.xsd
Abstract

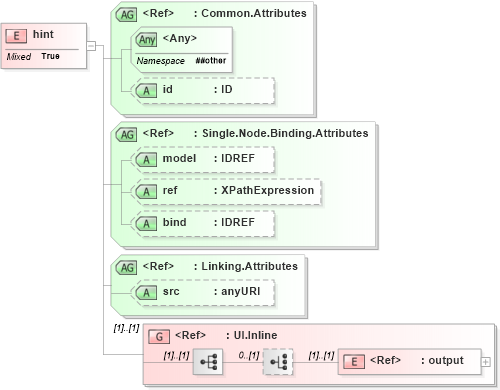

Collapse XSD Schema Diagram:
Drilldown into output in schema xforms-schema_xsd Drilldown into UI.Inline in schema xforms-schema_xsd Drilldown into src in schema xforms-schema_xsd Drilldown into Linking.Attributes in schema xforms-schema_xsd Drilldown into bind in schema xforms-schema_xsd Drilldown into ref in schema xforms-schema_xsd Drilldown into model in schema xforms-schema_xsd Drilldown into Single.Node.Binding.Attributes in schema xforms-schema_xsd Drilldown into id in schema xforms-schema_xsd Drilldown into Common.Attributes in schema xforms-schema_xsdXSD Diagram of hint in schema xforms-schema_xsd (W3C XForms)
Collapse XSD Schema Code:
<xsd:element name="hint">
    <xsd:complexType mixed="true">
        <xsd:group ref="xforms:UI.Inline" />
        <xsd:attributeGroup ref="xforms:Common.Attributes" />
        <xsd:attributeGroup ref="xforms:Single.Node.Binding.Attributes" />
        <xsd:attributeGroup ref="xforms:Linking.Attributes" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
output xforms:output (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id xforms:id Optional
model xforms:model Optional
ref xforms:ref Optional
bind xforms:bind Optional
src xforms:src (Optional)
<anyAttribute> Allowed namespace: '##other'
