Documentation for W3C XForms
Definition Type: ComplexType
Name: keybase
Namespace: http://www.w3.org/2001/XMLSchema
Type: xsd:annotated
Containing Schema: XMLSchema.xsd
Abstract

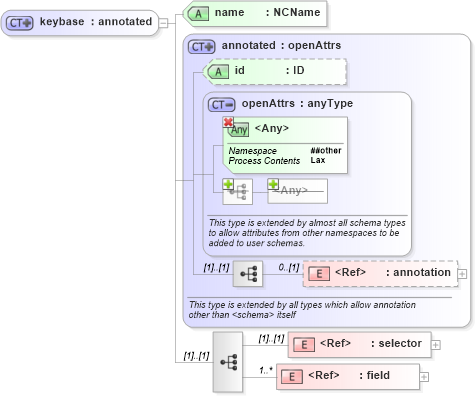

Collapse XSD Schema Diagram:
Drilldown into field in schema xmlschema_xsd Drilldown into selector in schema xmlschema_xsd Drilldown into annotation in schema xmlschema_xsd Drilldown into openAttrs in schema xmlschema_xsd Drilldown into id in schema xmlschema_xsd Drilldown into annotated in schema xmlschema_xsd Drilldown into name in schema xmlschema_xsdXSD Diagram of keybase in schema xmlschema_xsd (W3C XForms)
Collapse XSD Schema Code:
<xs:complexType name="keybase">
    <xs:complexContent>
        <xs:extension base="xs:annotated">
            <xs:sequence>
                <xs:element ref="xs:selector" />
                <xs:element ref="xs:field" minOccurs="1" maxOccurs="unbounded" />
            </xs:sequence>
            <xs:attribute name="name" type="xs:NCName" use="required" />
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
annotation xsd:annotation 0 (1)
selector xsd:selector (1) (1)
field xsd:field 1 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id xsd:id (Optional)
name xsd:name Required
<anyAttribute>
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
xsd:key, xsd:keyref, xsd:unique
