Documentation for W3C XForms
Definition Type: Element
Name: value
Namespace: http://www.w3.org/2002/xforms
Containing Schema: XForms-Schema.xsd
Abstract

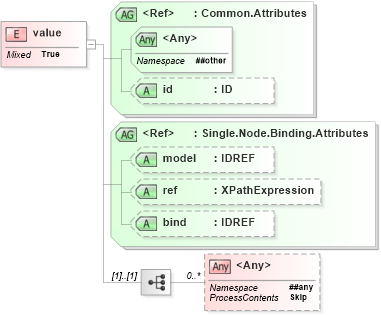

Collapse XSD Schema Diagram:
Drilldown into bind in schema xforms-schema_xsd Drilldown into ref in schema xforms-schema_xsd Drilldown into model in schema xforms-schema_xsd Drilldown into Single.Node.Binding.Attributes in schema xforms-schema_xsd Drilldown into id in schema xforms-schema_xsd Drilldown into Common.Attributes in schema xforms-schema_xsdXSD Diagram of value in schema xforms-schema_xsd (W3C XForms)
Collapse XSD Schema Code:
<xsd:element name="value">
    <xsd:complexType mixed="true">
        <xsd:sequence>
            <xsd:any namespace="##any" processContents="skip" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:attributeGroup ref="xforms:Common.Attributes" />
        <xsd:attributeGroup ref="xforms:Single.Node.Binding.Attributes" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> Allowed namespace: '##any' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id xforms:id Optional
model xforms:model Optional
ref xforms:ref Optional
bind xforms:bind Optional
<anyAttribute> Allowed namespace: '##other'
